2J4983PA 2J Antennas RF and Wireless distributor and supplier

Same model may have multiple batches, images only for reference.

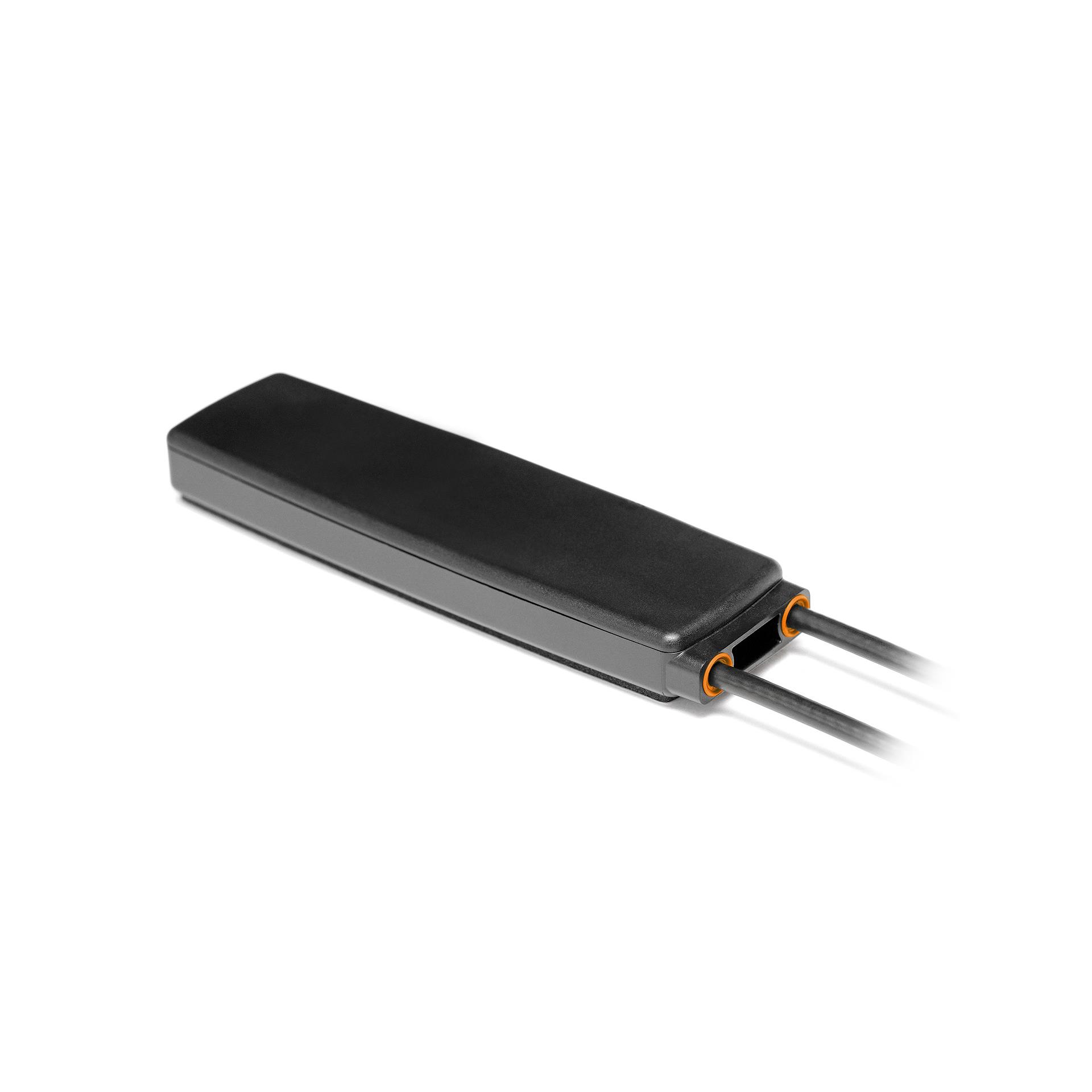

2J4983PA
Manufacturer No:	2J4983PA
Manufacturer:	2J Antennas
SUVSysrem No:	2J4983PA
Package:	Bag
Datasheet:	2J4983PA
Description:	788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz 2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR Module RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 3.2dBi, 5.6dBi, 5.1dBi, 4.7dBi SMA Male Adhesive
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

2J4983PA information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	2J Antennas
Package	Bag
Description	788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz 2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR Module RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 3.2dBi, 5.6dBi, 5.1dBi, 4.7dBi SMA Male Adhesive
Features	Cable - 3m
Mounting Type	Adhesive
Frequency Range	617MHz ~ 960MHz, 1.427GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz
Applications	2G, 3G, 4G, 5G, Cat-M, CBRS, IoT, LPWA, LTE, NB-IoT, NR
Gain	3.2dBi, 5.6dBi, 5.1dBi, 4.7dBi
Termination	SMA Male
Ingress Protection	IP67, IP69
Number of Bands	4
VSWR	2.3, 2.8, 3, 3.3
Antenna Type	Module
Height (Max)	0.720" (18.30mm)
Return Loss	-10.7dB, -8.5dB, -8.3dB, -7.3dB
Frequency Group	Wide Band
Frequency (Center/Band)	788.5MHz, 2.059GHz, 4.15GHz, 5.537GHz
RF Family/Standard	Cellular
Power - Max	25 W
