HCPL2601 Sanyo Semiconductor/onsemi Isolators distributor and supplier

Same model may have multiple batches, images only for reference.

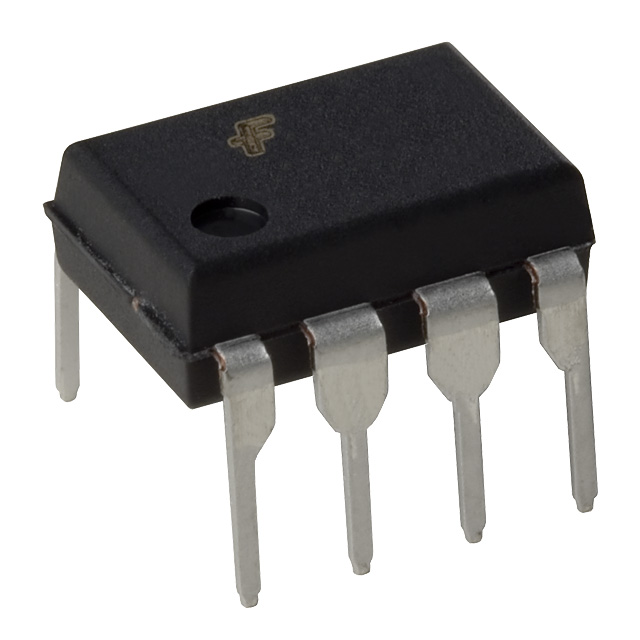

HCPL2601
Manufacturer No:	HCPL2601
Manufacturer:	Sanyo Semiconductor/onsemi
SUVSysrem No:	HCPL2601
Package:	Tube
Datasheet:	HCPL2601
Description:	Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 1 Channel 5kV/µs CMTI 8-DIP
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

HCPL2601 information

Product Attributes	Attribute Value
Category	Isolators
Manufacturer	Sanyo Semiconductor/onsemi
Package	Tube
Description	Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 1 Channel 5kV/µs CMTI 8-DIP
Package / Case	8-DIP (0.300", 7.62mm)
Output Type	Open Collector
Mounting Type	Through Hole
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)	1.4V
Data Rate	10Mbps
Input Type	DC
Voltage - Isolation	2500Vrms
Current - DC Forward (If) (Max)	50mA
Inputs - Side 1/Side 2	1/0
Supplier Device Package	8-DIP
Rise / Fall Time (Typ)	50ns, 12ns
Common Mode Transient Immunity (Min)	5kV/µs
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Number of Channels	1
Current - Output / Channel	50 mA
