| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
2J Antennas |
| Package |
Bag |
| Description |

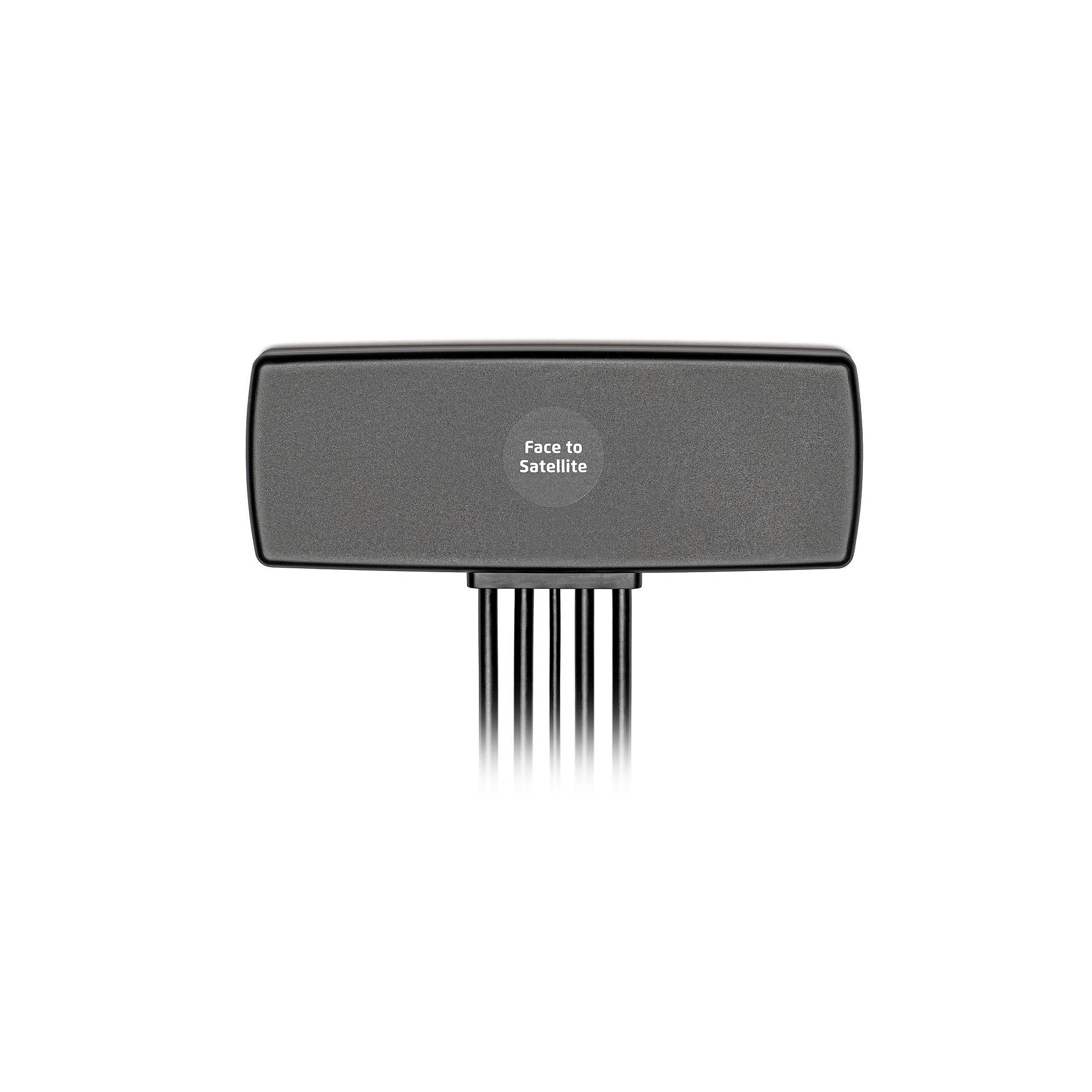

788.5MHz, 1.575GHz, 1.602GHz, 2.058GHz, 2.45GHz, 4.15GHz, 5.422GHz, 5.537GHz 2G, 3G, 4G, 5G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, Zigbee™ Module RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.598GHz ~ 2.49GHz, 2.41GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 4.92GHz ~ 5.925GHz, 5.15GHz ~ 5.925GHz 1.2dBi, 28dBi, 28dBi, 1.7dBi, 0.8dBi, 0.6dBi, 4.9dBi, -1.4dBi RP-SMA Male, SMA Male Adhesive |
| Features | Cable - 3m, Filter |
| Mounting Type | Adhesive |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.598GHz ~ 2.49GHz, 2.41GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 4.92GHz ~ 5.925GHz, 5.15GHz ~ 5.925GHz |
| Applications | 2G, 3G, 4G, 5G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, Zigbee™ |
| Gain | 1.2dBi, 28dBi, 28dBi, 1.7dBi, 0.8dBi, 0.6dBi, 4.9dBi, -1.4dBi |
| Termination | RP-SMA Male, SMA Male |
| Ingress Protection | IP67, IP69 |
| Number of Bands | 8 |
| VSWR | 1.4, 2, 2.4, 2.7, 2.9, 3.8, 4.2 |
| Antenna Type | Module |
| Height (Max) | 0.669" (17.00mm) |
| Return Loss | -15dB, -9.8dB, -7.8dB, -7dB, -5.1dB, -4.3dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.575GHz, 1.602GHz, 2.058GHz, 2.45GHz, 4.15GHz, 5.422GHz, 5.537GHz |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi |
| Power - Max | 35 W |
