| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
2J Antennas |
| Package |
Bag |
| Description |

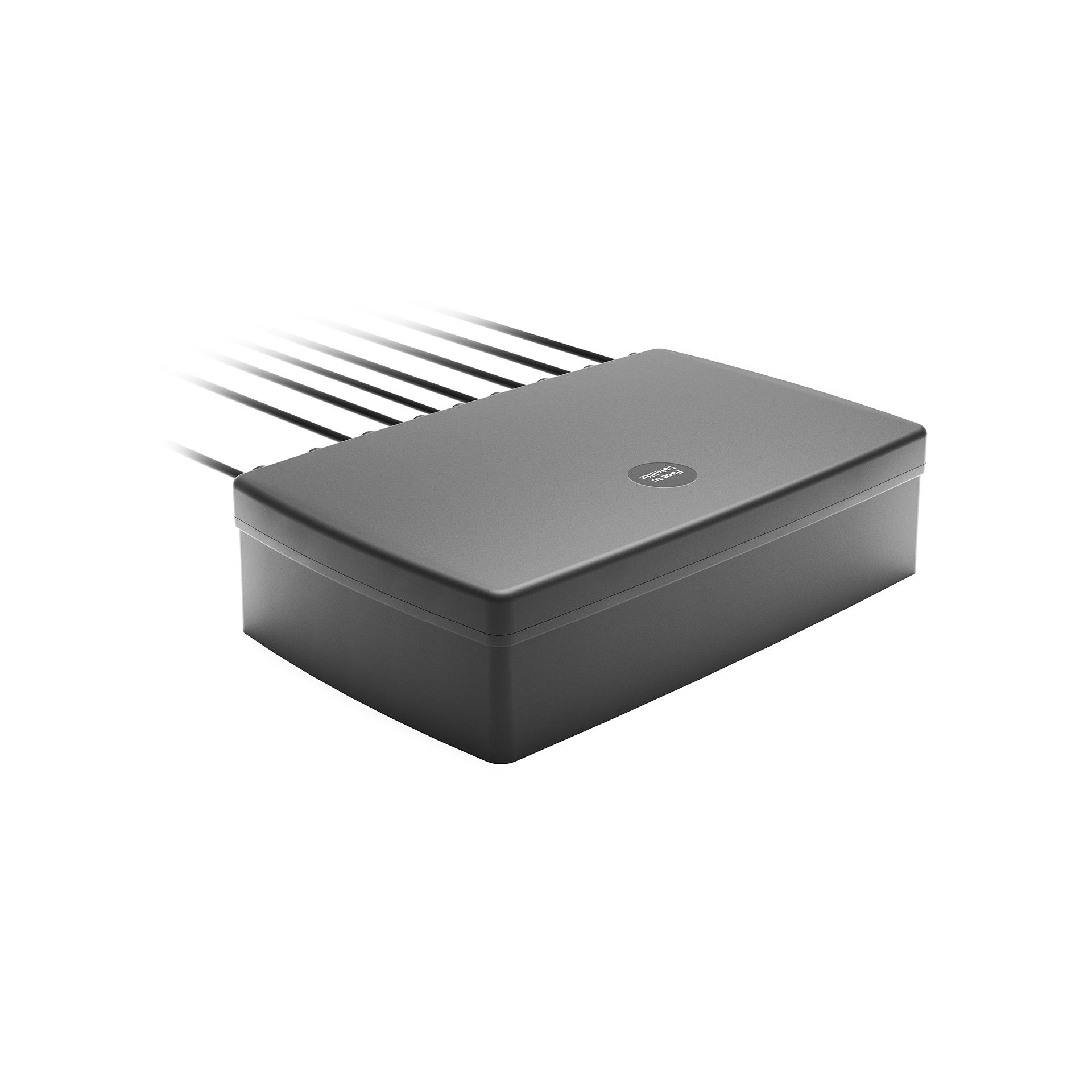

788.5MHz, 1.575GHz, 1.602GHz, 2.058GHz, 2.45GHz, 4.15GHz, 5.422GHz, 5.537GHz, 6.525GHz 2G, 3G, 4G, 5G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, Wi-Fi, Zigbee™ Module RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.598GHz ~ 2.49GHz, 2.41GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 4.92GHz ~ 5.925GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz 3.9dBi, 28dBi, 28dBi, 5.8dBi, 5.6dBi, 6.6dBi, 6.1dBi, 4.5dBi, 4.6dBi RP-SMA Male, SMA Male Magnetic |
| Features | Cable - 3m, Filter |
| Mounting Type | Magnetic |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 1.606GHz, 1.598GHz ~ 2.49GHz, 2.41GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 4.92GHz ~ 5.925GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz |
| Applications | 2G, 3G, 4G, 5G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, Wi-Fi, Zigbee™ |
| Gain | 3.9dBi, 28dBi, 28dBi, 5.8dBi, 5.6dBi, 6.6dBi, 6.1dBi, 4.5dBi, 4.6dBi |
| Termination | RP-SMA Male, SMA Male |
| Ingress Protection | IP67, IP69 |
| Number of Bands | 9 |
| VSWR | 1.6, 1.7, 1.8 |
| Antenna Type | Module |
| Height (Max) | 2.008" (51.00mm) |
| Return Loss | -14.9dB, -14.2dB, -13.2dB, -13.1dB, -12.9dB, -11.9dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.575GHz, 1.602GHz, 2.058GHz, 2.45GHz, 4.15GHz, 5.422GHz, 5.537GHz, 6.525GHz |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi |
| Power - Max | 25 W |
