| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
2J Antennas |
| Package |
Bag |
| Description |

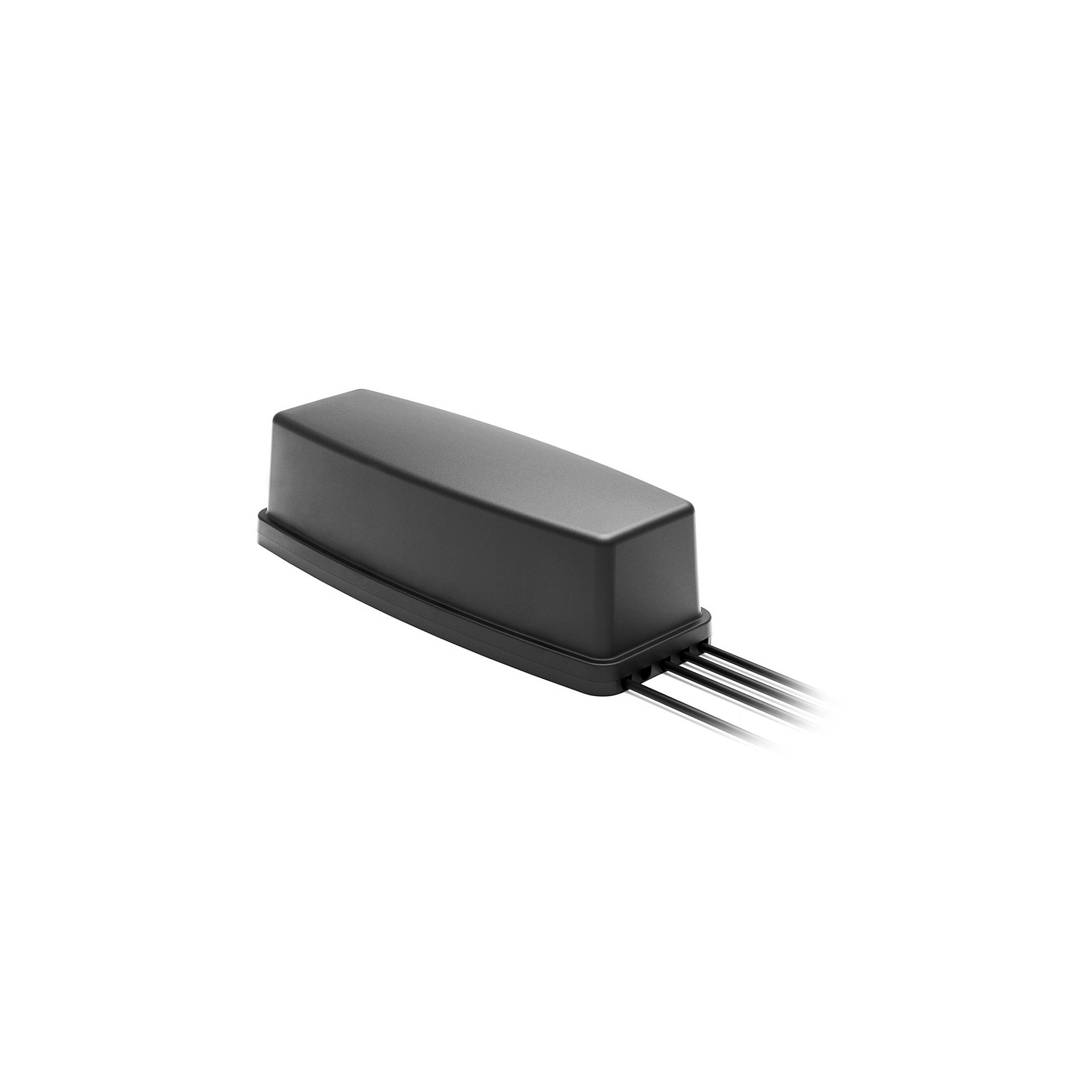

788.5MHz, 1.575GHz, 1.604GHz, 2.058GHz, 2.45GHz, 4.15GHz, 5.537GHz, 5.422GHz, 6.525GHz 2G, 3G, 4G, 5G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, LoRa, LTE, Sigfox, Wi-Fi, Zigbee™ Module RF Antenna 617MHz ~ 960MHz, 1.427GHz ~ 1.61GHz, 1.598GHz ~ 2.49GHz, 2.41GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 4.92GHz ~ 5.925GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz 2.5dBi, 28dBi, 28dBi, 4.2dBi, 5dBi, 5.4dBi, 6.4dBi, 4.4dBi, 5.3dBi RP-SMA Male, SMA Male Magnetic |
| Features | Cable - 3m, Filter |
| Mounting Type | Magnetic |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 1.61GHz, 1.598GHz ~ 2.49GHz, 2.41GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 4.92GHz ~ 5.925GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz |
| Applications | 2G, 3G, 4G, 5G, Bluetooth, Galileo, GLONASS, GNSS, GPS, ISM, LoRa, LTE, Sigfox, Wi-Fi, Zigbee™ |
| Gain | 2.5dBi, 28dBi, 28dBi, 4.2dBi, 5dBi, 5.4dBi, 6.4dBi, 4.4dBi, 5.3dBi |
| Termination | RP-SMA Male, SMA Male |
| Ingress Protection | IP67, IP69 |
| Number of Bands | 9 |
| VSWR | 1.3, 1.4, 1.5, 1.6, 1.8, 2.7, 2.8 |
| Antenna Type | Module |
| Height (Max) | 2.209" (56.10mm) |
| Return Loss | -18.6dB, -16.7dB, -15.4dB, -15dB, -12.3dB, -6.9dB, -6.7dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.575GHz, 1.604GHz, 2.058GHz, 2.45GHz, 4.15GHz, 5.537GHz, 5.422GHz, 6.525GHz |
| RF Family/Standard | 802.15.4, Bluetooth, Cellular, General ISM, Navigation, WiFi |
| Power - Max | 25 W |
