TPT7741-SOBR 3PEAK Isolators distributor and supplier

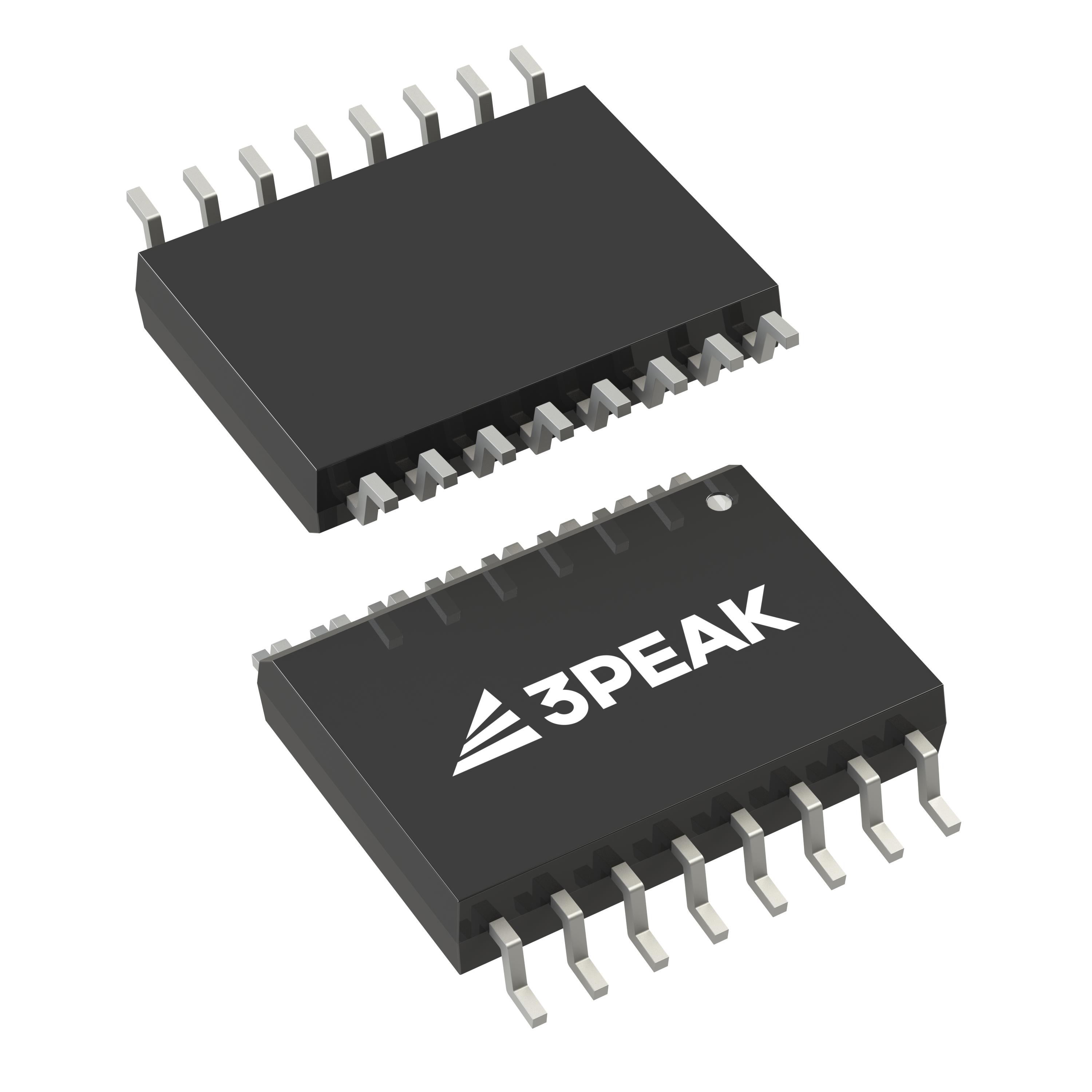

Same model may have multiple batches, images only for reference.

TPT7741-SOBR
Manufacturer No:	TPT7741-SOBR
Manufacturer:	3PEAK
SUVSysrem No:	TPT7741-SOBR
Package:	Tape & Reel (TR)
Datasheet:	TPT7741-SOBR
Description:	General Purpose Digital Isolator 5000Vrms 4 Channel 150Mbps 150kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

TPT7741-SOBR information

Product Attributes	Attribute Value
Category	Isolators
Manufacturer	3PEAK
Package	Tape & Reel (TR)
Description	General Purpose Digital Isolator 5000Vrms 4 Channel 150Mbps 150kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Package / Case	16-SOIC (0.295", 7.50mm Width)
Mounting Type	Surface Mount
Type	General Purpose
Operating Temperature	-40°C ~ 125°C
Voltage - Supply	2.25V ~ 5.5V
Data Rate	150Mbps
Technology	Capacitive Coupling
Voltage - Isolation	5000Vrms
Inputs - Side 1/Side 2	3/1
Supplier Device Package	16-SOP
Rise / Fall Time (Typ)	0.7ns, 0.7ns
Common Mode Transient Immunity (Min)	150kV/µs
Propagation Delay tpLH / tpHL (Max)	22ns, 22ns
Isolated Power	Yes
Channel Type	Unidirectional
Pulse Width Distortion (Max)	5ns
Number of Channels	4
