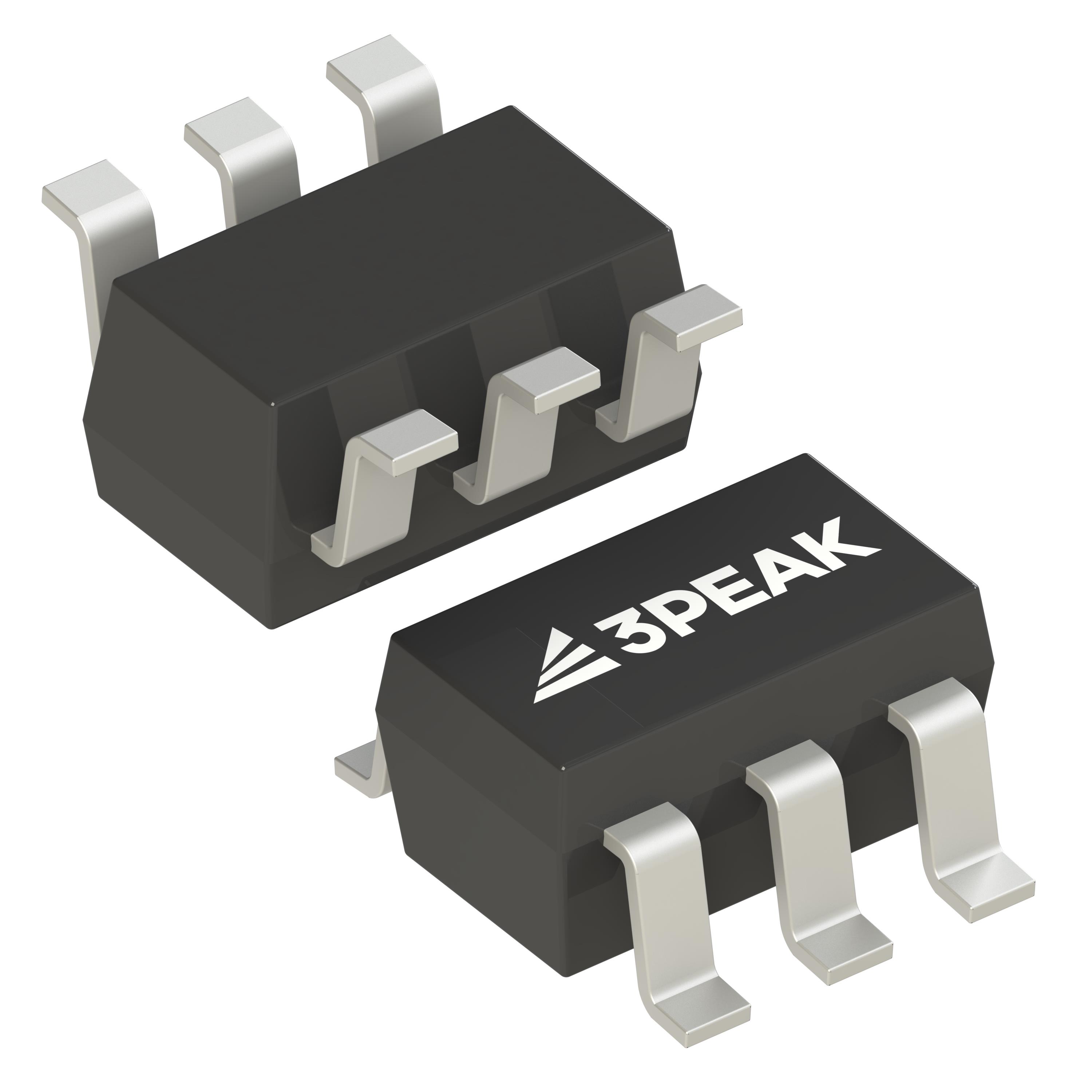

Same model may have multiple batches, images only for reference.

TPW3157A-CR
Manufacturer No: TPW3157A-CR
Manufacturer: 3PEAK
SUVSysrem No: TPW3157A-CR
Package: Tape & Reel (TR)
Datasheet: TPW3157A-CR
Description: 1 Circuit IC Switch 2:1 2Ohm SC-70-6
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

TPW3157A-CR information
Product Attributes Attribute Value
Category Integrated Circuits (ICs)
Manufacturer 3PEAK
Package Tape & Reel (TR)
Description 1 Circuit IC Switch 2:1 2Ohm SC-70-6
Package / Case6-TSSOP, SC-88, SOT-363
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 125°C
On-State Resistance (Max)2Ohm
-3db Bandwidth300MHz
Supplier Device PackageSC-70-6
Voltage - Supply, Single (V+)1.65V ~ 5.5V
Charge Injection20pC
Crosstalk-65dB @ 1MHz
Switch CircuitSPDT - Open/Closed
Multiplexer/Demultiplexer Circuit2:1
Channel-to-Channel Matching (ΔRon)300mOhm
Switch Time (Ton, Toff) (Max)40ns, 20ns
Channel Capacitance (CS(off), CD(off))5pF, 5pF
Current - Leakage (IS(off)) (Max)10nA
Number of Circuits1
Package

  • Step1:
    Product

  • Step2:
    Casing drivepipe

  • Step3:
    Anti-static bag

  • Step4:
    Packging boxes

  • Step5:
    bar-code shipping tag
Returning/Warranty
SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
