| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
Abracon |
| Package |
Bulk |
| Description |

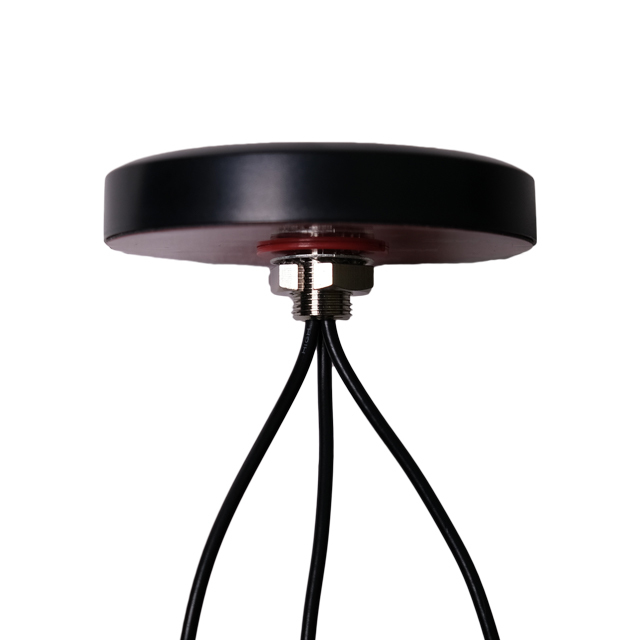

829MHz, 1.581GHz, 2.2GHz, 2.441GHz, 5.362GHz BeiDou, Cat-M, GLONASS, GNSS, GPS, IoT, LTE, M2M, NB-IoT, QZSS, Wi-Fi Module RF Antenna 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz 2dBi, 2dBic, 2dBi, 2dBi, 2dBi SMA Male (3) Screw Mount |
| Features | Cable - 3m, LNA |
| Mounting Type | Screw Mount |
| Frequency Range | 698MHz ~ 960MHz, 1.561GHz ~ 1.602GHz, 1.71GHz ~ 2.69GHz, 2.4GHz ~ 2.4835GHz, 4.9GHz ~ 5.825GHz |
| Applications | BeiDou, Cat-M, GLONASS, GNSS, GPS, IoT, LTE, M2M, NB-IoT, QZSS, Wi-Fi |
| Gain | 2dBi, 2dBic, 2dBi, 2dBi, 2dBi |
| Termination | SMA Male (3) |
| Ingress Protection | IP67 |
| Number of Bands | 5 |
| VSWR | 1.5, 2, 2.5, 3 |
| Antenna Type | Module |
| Height (Max) | 0.642" (16.30mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.581GHz, 2.2GHz, 2.441GHz, 5.362GHz |
| RF Family/Standard | Cellular, Navigation, WiFi |
