| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
Abracon |
| Package |
Bag |
| Description |

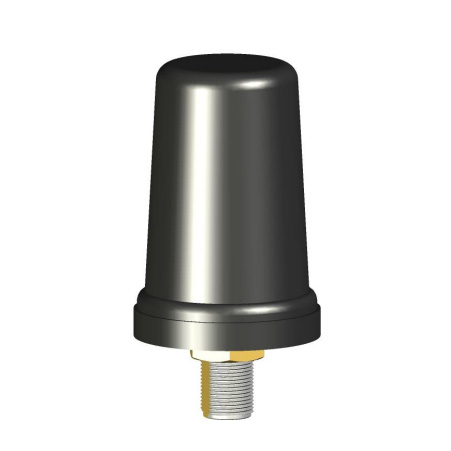

2.45GHz, 5.5GHz, 6.53GHz 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ Dome RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz 3dBi, 6dBi, 5dBi N Type Female Panel Mount |
| Features | Cable - 200mm |
| Mounting Type | Panel Mount |
| Frequency Range | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.93GHz ~ 7.13GHz |
| Applications | 802.11b/be/g/n/ac/ax, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
| Gain | 3dBi, 6dBi, 5dBi |
| Termination | N Type Female |
| Number of Bands | 3 |
| VSWR | 2 |
| Antenna Type | Dome |
| Height (Max) | 3.150" (80.00mm) |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency (Center/Band) | 2.45GHz, 5.5GHz, 6.53GHz |
| RF Family/Standard | Bluetooth, WiFi |
