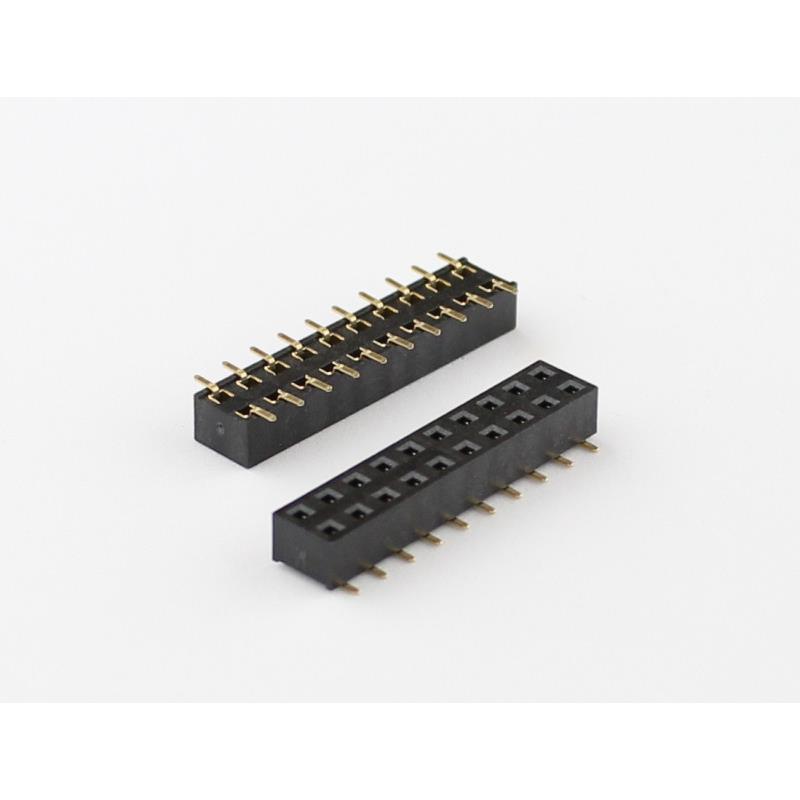

Same model may have multiple batches, images only for reference.

ABL-254-62-SR45
Manufacturer No:	ABL-254-62-SR45
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	ABL-254-62-SR45
Package:	Tape & Reel (TR)
Datasheet:	ABL-254-62-SR45
Description:	62 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

ABL-254-62-SR45 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tape & Reel (TR)
Description	62 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Connector Type	Receptacle
Current Rating (Amps)	3A per Contact
Mounting Type	Surface Mount
Number of Positions	62
Style	Board to Board
Operating Temperature	-55°C ~ 105°C
Contact Type	Female Socket
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Black
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Shape	Square
Insulation Height	0.150" (3.81mm)
Insulation Material	Polyamide (PA6T), Nylon 6T
Row Spacing - Mating	0.100" (2.54mm)
Number of Rows	2
