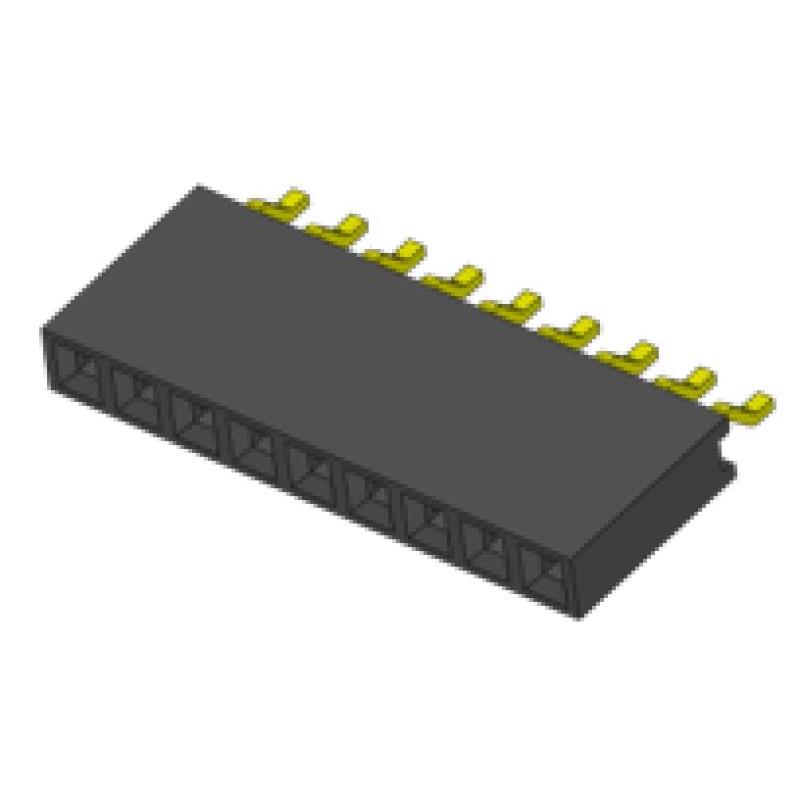

Same model may have multiple batches, images only for reference.

A-BL-254EA08-085GSR1
Manufacturer No:	A-BL-254EA08-085GSR1
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	A-BL-254EA08-085GSR1
Package:	Tape & Reel (TR)
Datasheet:	A-BL-254EA08-085GSR1
Description:	8 Position Header Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

A-BL-254EA08-085GSR1 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tape & Reel (TR)
Description	8 Position Header Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
Connector Type	Header
Current Rating (Amps)	3A
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Style	Board to Board
Operating Temperature	-40°C ~ 105°C
Contact Type	Forked
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Insulation Color	Black
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Shape	Square
Insulation Height	0.197" (5.00mm)
Insulation Material	Polyamide (PA9T), Nylon 9T, Glass Filled
Number of Rows	1
