| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
ASSMANN WSW Components |
| Package |
Tube |
| Description |

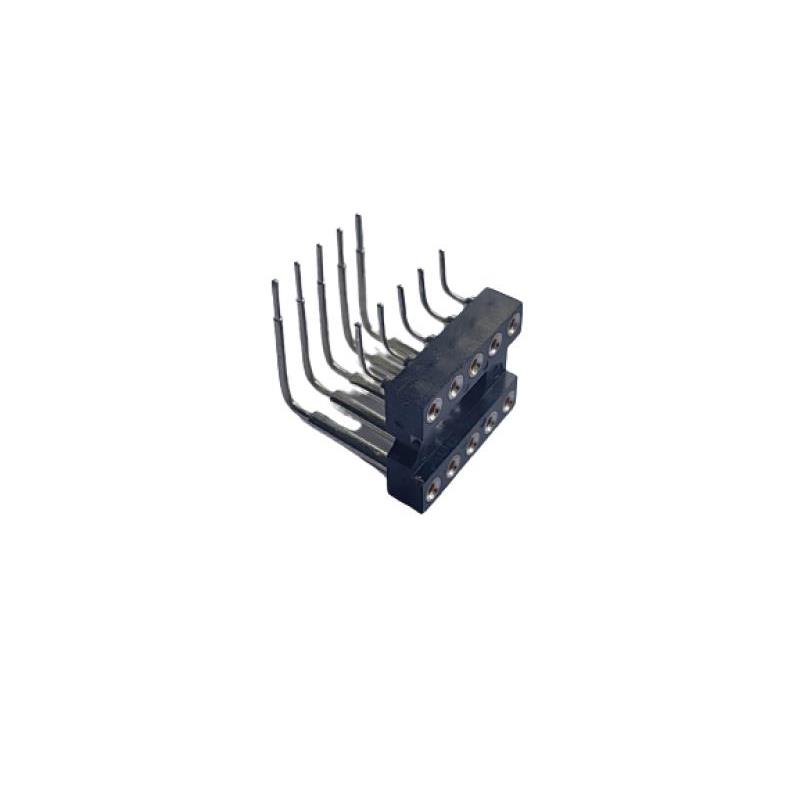

14 Pos DIP, 0.3" (7.62mm) Row Spacing Socket Nickel Through Hole, Right Angle |
| Features | Open Frame |
| Mounting Type | Through Hole, Right Angle |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 14 |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Nickel |
| Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Material - Mating | Beryllium Copper |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Material - Post | Brass |
| Termination Post Length | 0.126" (3.20mm) |
| Contact Resistance | 4mOhm |
| Current Rating (Amps) | 3 A |
