AWH 60G-0502-T ASSMANN WSW Components Connectors, Interconnects distributor and supplier

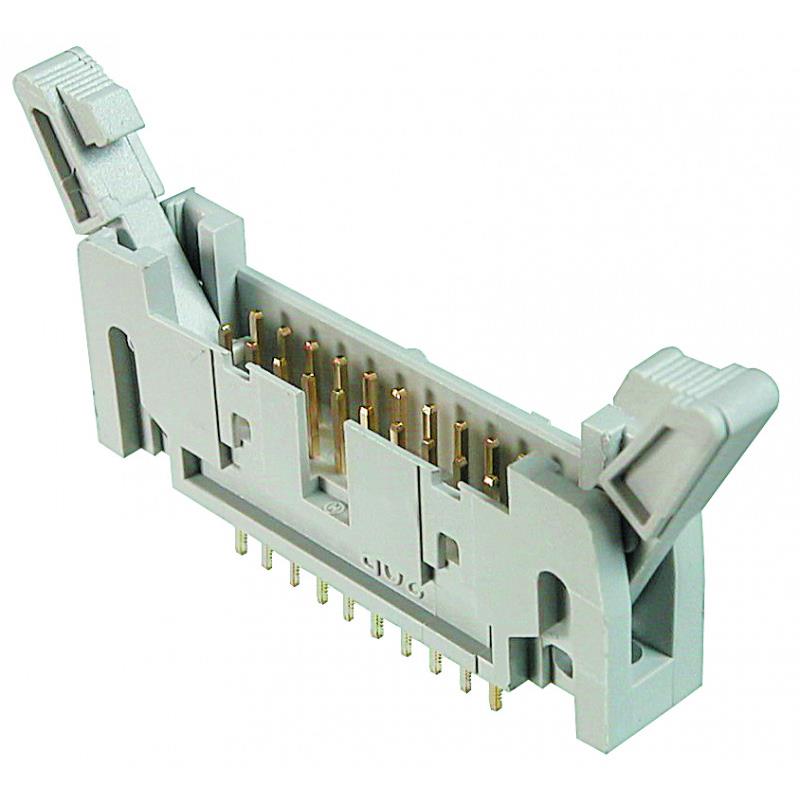

Same model may have multiple batches, images only for reference.

AWH 60G-0502-T
Manufacturer No:	AWH 60G-0502-T
Manufacturer:	ASSMANN WSW Components
SUVSysrem No:	AWH 60G-0502-T
Package:	Tray
Datasheet:	AWH 60G-0502-T
Description:	Connector Header Through Hole 60 position 0.100" (2.54mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

AWH 60G-0502-T information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	ASSMANN WSW Components
Package	Tray
Description	Connector Header Through Hole 60 position 0.100" (2.54mm)
Features	Polarizing Key
Connector Type	Header
Current Rating (Amps)	3A
Mounting Type	Through Hole
Number of Positions	60
Number of Rows	2
Style	Board to Cable/Wire
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Gray
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Shape	Square
Contact Length - Post	0.100" (2.54mm)
Insulation Height	0.669" (17.00mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating	0.100" (2.54mm)
Contact Length - Mating	0.236" (6.00mm)
