Home / Products / Isolators / Isolators - Gate Drivers / ACFJ-3262-500E

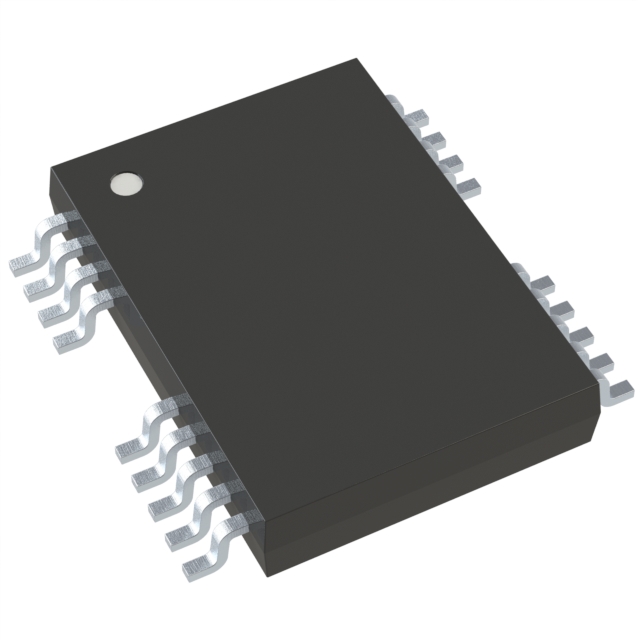

Same model may have multiple batches, images only for reference.

ACFJ-3262-500E
Manufacturer No: ACFJ-3262-500E
Manufacturer: Broadcom
SUVSysrem No: ACFJ-3262-500E
Package: Tape & Reel (TR)
Datasheet: ACFJ-3262-500E
Description: 10A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 24-SO
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

ACFJ-3262-500E information
Product Attributes Attribute Value
Category Isolators
Manufacturer Broadcom
Package Tape & Reel (TR)
Description 10A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 24-SO
Package / Case24-SOIC (0.295", 7.50mm Width), 18 Leads
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 125°C
Voltage - Forward (Vf) (Typ)1.55V
Current - Peak Output10A
TechnologyCapacitive Coupling
Current - Output High, Low6A, 6A
Voltage - Isolation5000Vrms
Approval AgencyCSA, IEC/EN, UL
Supplier Device Package24-SO
Rise / Fall Time (Typ)7ns, 7ns
Common Mode Transient Immunity (Min)100kV/µs
Propagation Delay tpLH / tpHL (Max)95ns, 95ns
Pulse Width Distortion (Max)20ns
Number of Channels2
Current - DC Forward (If) (Max)20 mA
Voltage - Output Supply10V ~ 25V
