| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
Connex (Amphenol RF) |
| Package |
Bulk |
| Description |

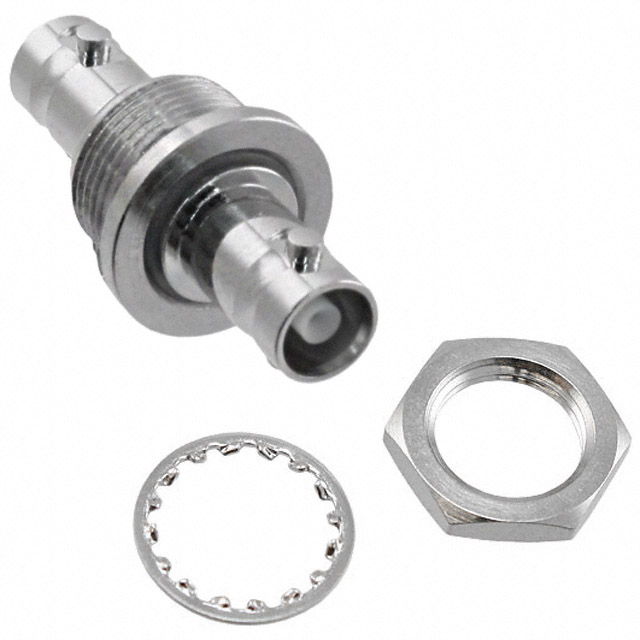

Adapter Coaxial Connector BNC HD Jack, Female Socket To BNC HD Jack, Female Socket 75 Ohms |
| Features | Isolated |
| Impedance | 75 Ohms |
| Mounting Type | Panel Mount |
| Style | Straight |
| Convert From (Adapter End) | BNC HD Jack, Female Socket |
| Convert To (Adapter End) | BNC HD Jack, Female Socket |
| Operating Temperature | -65°C ~ 165°C |
| Fastening Type | Bayonet Lock, Bayonet Lock |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Feature | Bulkhead |
| Adapter Series | BNC, HD to BNC, HD |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Body Material | Brass |
| Mating Cycles | 500 |
| Center Contact Material | Beryllium Copper |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Frequency - Max | 3 GHz |
