| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
Connex (Amphenol RF) |
| Package |
Box |
| Description |

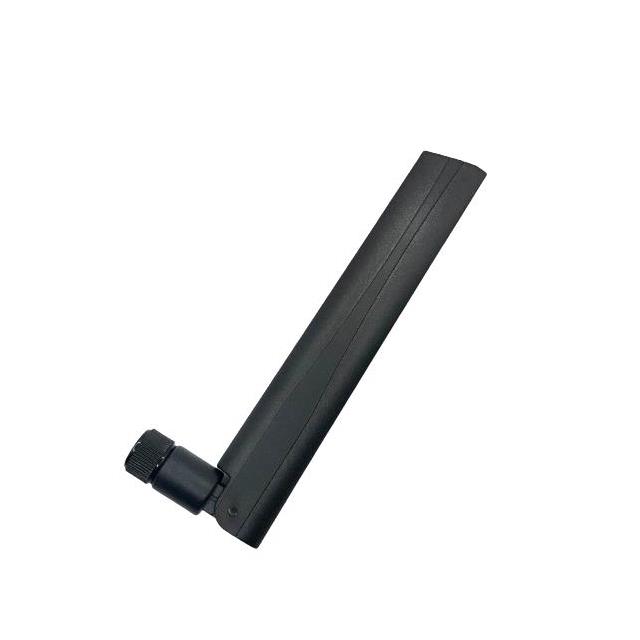

788.5MHz, 1.47GHz, 2.2GHz, 4.15GHz, 5.5375GHz General Purpose Whip, Right Angle RF Antenna 617MHz ~ 960MHz, 1.42GHz ~ 1.52GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz 1.8dBi, 2.2dBi, 3.3dBi, 3dBi, 3.8dBi SMA Connector Mount |
| Mounting Type | Connector Mount |
| Frequency Range | 617MHz ~ 960MHz, 1.42GHz ~ 1.52GHz, 1.71GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz |
| Applications | General Purpose |
| Gain | 1.8dBi, 2.2dBi, 3.3dBi, 3dBi, 3.8dBi |
| Termination | SMA |
| Number of Bands | 5 |
| Antenna Type | Whip, Right Angle |
| Height (Max) | 5.591" (142.00mm) |
| Return Loss | -7dB, -6dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.47GHz, 2.2GHz, 4.15GHz, 5.5375GHz |
| RF Family/Standard | General ISM |
| Power - Max | 1 W |
