2N7002A-AQ Diotec Semiconductor Discrete Semiconductor Products distributor and supplier

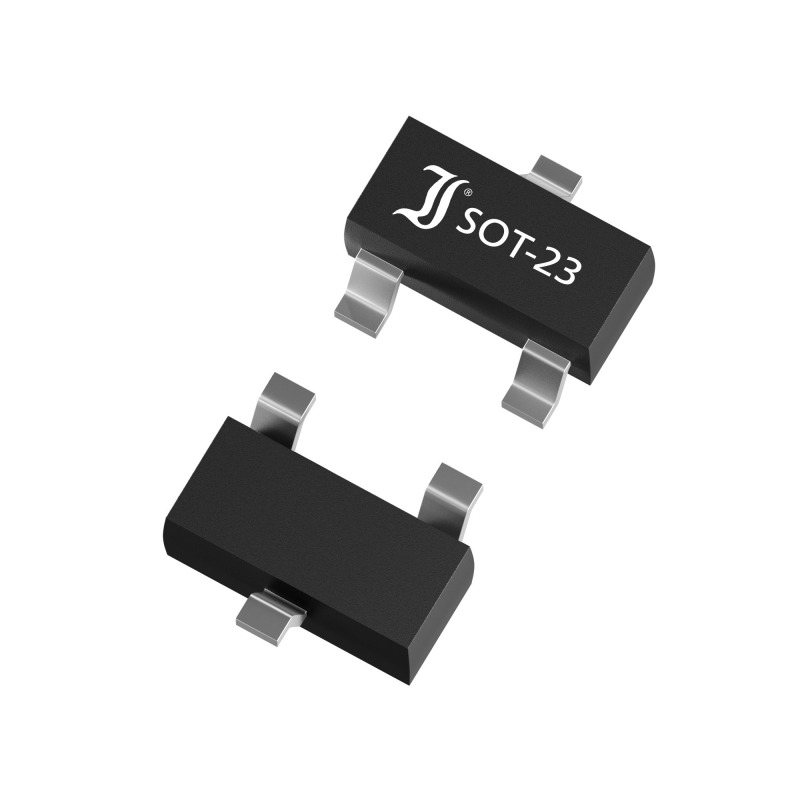

Same model may have multiple batches, images only for reference.

2N7002A-AQ
Manufacturer No:	2N7002A-AQ
Manufacturer:	Diotec Semiconductor
SUVSysrem No:	2N7002A-AQ
Package:	Bulk
Datasheet:	2N7002A-AQ
Description:	N-Channel 60 V 280mA (Ta) 350mW (Ta) Surface Mount SOT-23-3 (TO-236)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

2N7002A-AQ information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Diotec Semiconductor
Package	Bulk
Description	N-Channel 60 V 280mA (Ta) 350mW (Ta) Surface Mount SOT-23-3 (TO-236)
Package / Case	TO-236-3, SC-59, SOT-23-3
Mounting Type	Surface Mount
Operating Temperature	150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	280mA (Ta)
Rds On (Max) @ Id, Vgs	2Ohm @ 500mA, 10V
Power Dissipation (Max)	350mW (Ta)
Vgs(th) (Max) @ Id	2.5V @ 250µA
Supplier Device Package	SOT-23-3 (TO-236)
Grade	Automotive
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Vgs (Max)	±30V
Drain to Source Voltage (Vdss)	60 V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
Qualification	AEC-Q101

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
