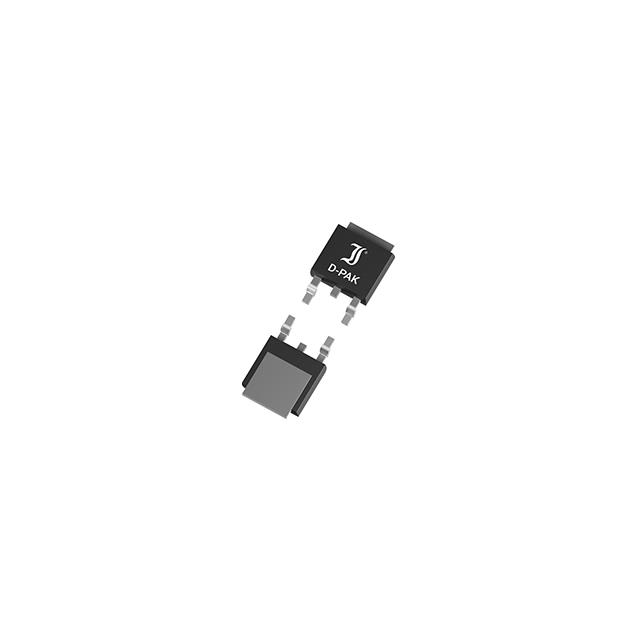

Same model may have multiple batches, images only for reference.

2SD1815TR-AQ
Manufacturer No:	2SD1815TR-AQ
Manufacturer:	Diotec Semiconductor
SUVSysrem No:	2SD1815TR-AQ
Package:	Bulk
Datasheet:	2SD1815TR-AQ
Description:	Bipolar (BJT) Transistor NPN 100 V 3 A 180MHz 20 W Surface Mount TO-252 (DPAK)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

2SD1815TR-AQ information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Diotec Semiconductor
Package	Bulk
Description	Bipolar (BJT) Transistor NPN 100 V 3 A 180MHz 20 W Surface Mount TO-252 (DPAK)
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63
Mounting Type	Surface Mount
Transistor Type	NPN
Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	400mV @ 150mA, 1.5A
Current - Collector Cutoff (Max)	1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 500mA, 5V
Frequency - Transition	180MHz
Supplier Device Package	TO-252 (DPAK)
Grade	Automotive
Current - Collector (Ic) (Max)	3 A
Voltage - Collector Emitter Breakdown (Max)	100 V
Power - Max	20 W
Qualification	AEC-Q101
