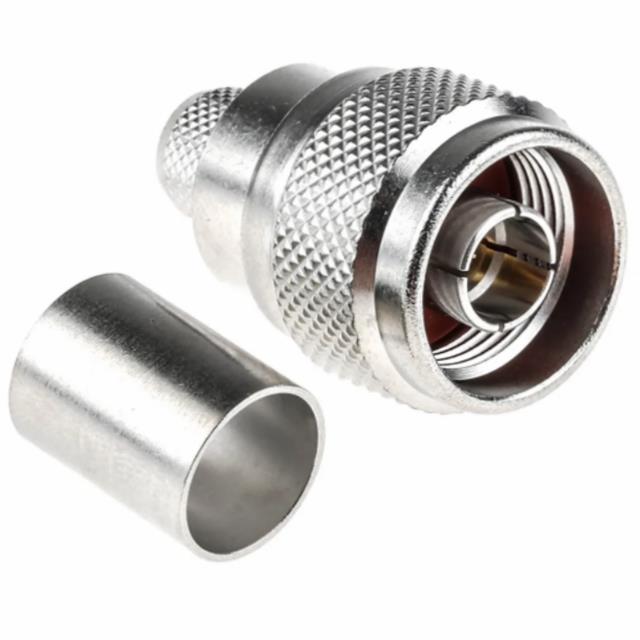

Same model may have multiple batches, images only for reference.

2956696C022
Manufacturer No: 2956696C022
Manufacturer: EASE Electronics
SUVSysrem No: 2956696C022
Package: Bag
Datasheet: 2956696C022
Description: N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

2956696C022 information
Product Attributes Attribute Value
Category Connectors, Interconnects
Manufacturer EASE Electronics
Package Bag
Description N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
Connector TypePlug, Male Pin
Contact TerminationCrimp
Impedance50 Ohms
Mounting TypeFree Hanging (In-Line)
Cable GroupRG-165, 213
Operating Temperature-55°C ~ 155°C
Fastening TypeThreaded
Connector StyleN Type
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Body MaterialBrass
Housing ColorSilver
Mating Cycles500
Shield TerminationCrimp
Center Contact MaterialGold
Body FinishWhite Bronze
Center Contact PlatingGold
Frequency - Max11 GHz
Number of Ports1
Voltage Rating500 V
