302-036-699-205 EDAC Inc. Connectors, Interconnects distributor and supplier

Same model may have multiple batches, images only for reference.

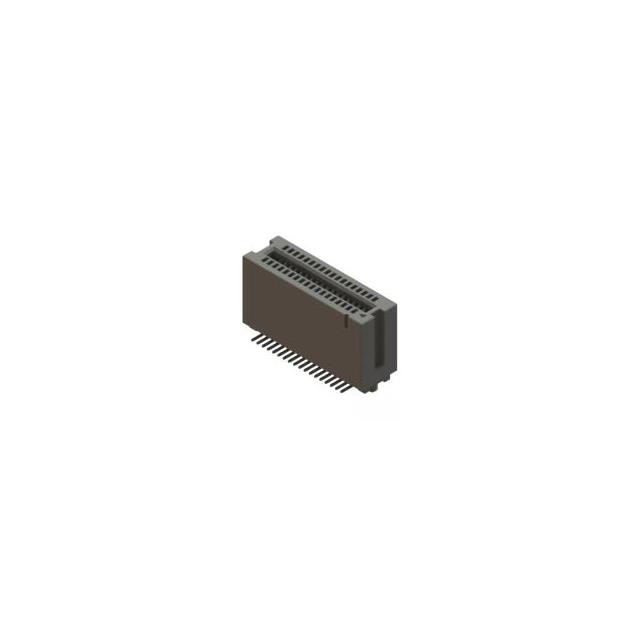

302-036-699-205
Manufacturer No:	302-036-699-205
Manufacturer:	EDAC Inc.
SUVSysrem No:	302-036-699-205
Package:	Tube
Datasheet:	302-036-699-205
Description:	36 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm) Black
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

302-036-699-205 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	EDAC Inc.
Package	Tube
Description	36 Position Female Connector Non Specified - Dual Edge Gold 0.050" (1.27mm) Black
Features	Board Guide
Gender	Female
Contact Finish	Gold
Color	Black
Mounting Type	Surface Mount
Number of Positions	36
Pitch	0.050" (1.27mm)
Operating Temperature	-55°C ~ 85°C
Read Out	Dual
Contact Type	Cantilever
Card Type	Non Specified - Dual Edge
Card Thickness	0.051" ~ 0.071" (1.30mm ~ 1.80mm)
Termination	Solder
Contact Finish Thickness	30.0µin (0.76µm)
Material - Insulation	Polyphenylene Sulfide (PPS)
Contact Material	Copper Alloy
Number of Positions/Bay/Row	18
Number of Rows	2
Termination Rows	2
