FSB137HLN Fairchild Semiconductor Integrated Circuits (ICs) distributor and supplier

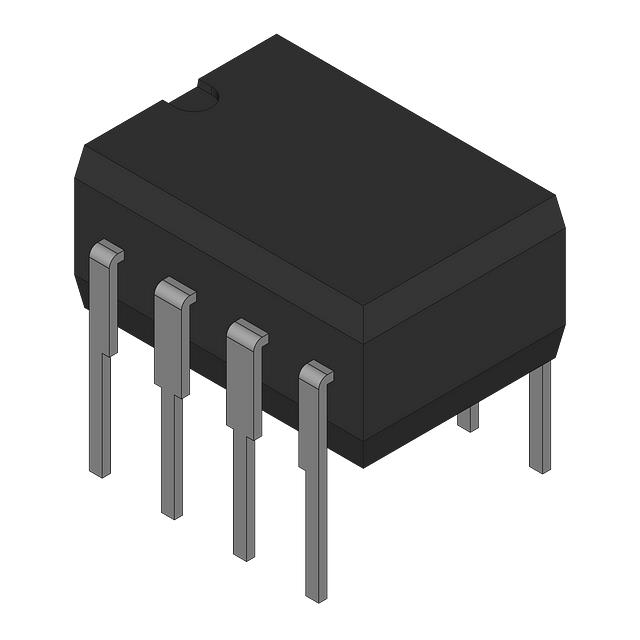

Same model may have multiple batches, images only for reference.

FSB137HLN
Manufacturer No:	FSB137HLN
Manufacturer:	Fairchild Semiconductor
SUVSysrem No:	FSB137HLN
Package:	Bulk
Datasheet:	FSB137HLN
Description:	Converter Offline Flyback Topology 100kHz 8-MDIP
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

FSB137HLN information

Product Attributes	Attribute Value
Category	Integrated Circuits (ICs)
Manufacturer	Fairchild Semiconductor
Package	Bulk
Description	Converter Offline Flyback Topology 100kHz 8-MDIP
Package / Case	8-DIP (0.300", 7.62mm)
Mounting Type	Through Hole
Operating Temperature	-40°C ~ 105°C (TA)
Duty Cycle	80%
Frequency - Switching	100kHz
Internal Switch(s)	Yes
Voltage - Breakdown	700V
Output Isolation	Isolated
Topology	Flyback
Voltage - Supply (Vcc/Vdd)	6V ~ 30V
Supplier Device Package	8-MDIP
Fault Protection	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Voltage - Start Up	12 V
Control Features	Soft Start
