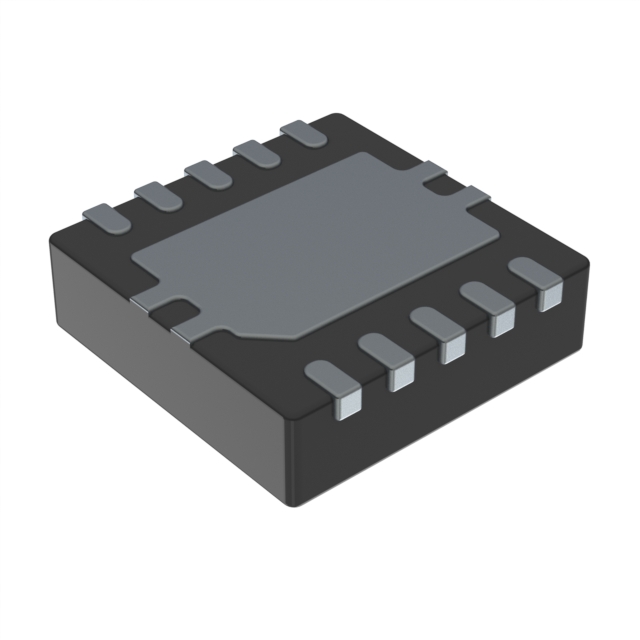

2ED2744S01GXTMA1
Manufacturer No: 2ED2744S01GXTMA1
Manufacturer: IR (Infineon Technologies)
SUVSysrem No: 2ED2744S01GXTMA1
Package: Tape & Reel (TR)
Datasheet: 2ED2744S01GXTMA1
Description: Half-Bridge Gate Driver IC Non-Inverting PG-VSON-10-5
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

2ED2744S01GXTMA1 information
Product Attributes Attribute Value
Category Integrated Circuits (ICs)
Manufacturer IR (Infineon Technologies)
Package Tape & Reel (TR)
Description Half-Bridge Gate Driver IC Non-Inverting PG-VSON-10-5
Package / Case10-VFDFN Exposed Pad
Mounting TypeSurface Mount
Operating Temperature-40°C ~ 125°C (TA)
Voltage - Supply7V ~ 18V
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)160 V
Supplier Device PackagePG-VSON-10-5
Rise / Fall Time (Typ)24ns, 12ns
Channel TypeIndependent
Driven ConfigurationHalf-Bridge
Number of Drivers2
Gate TypeN-Channel MOSFET
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)2A, 4A
