IMZA75R027M1HXKSA1 IR (Infineon Technologies) Discrete Semiconductor Products distributor and supplier

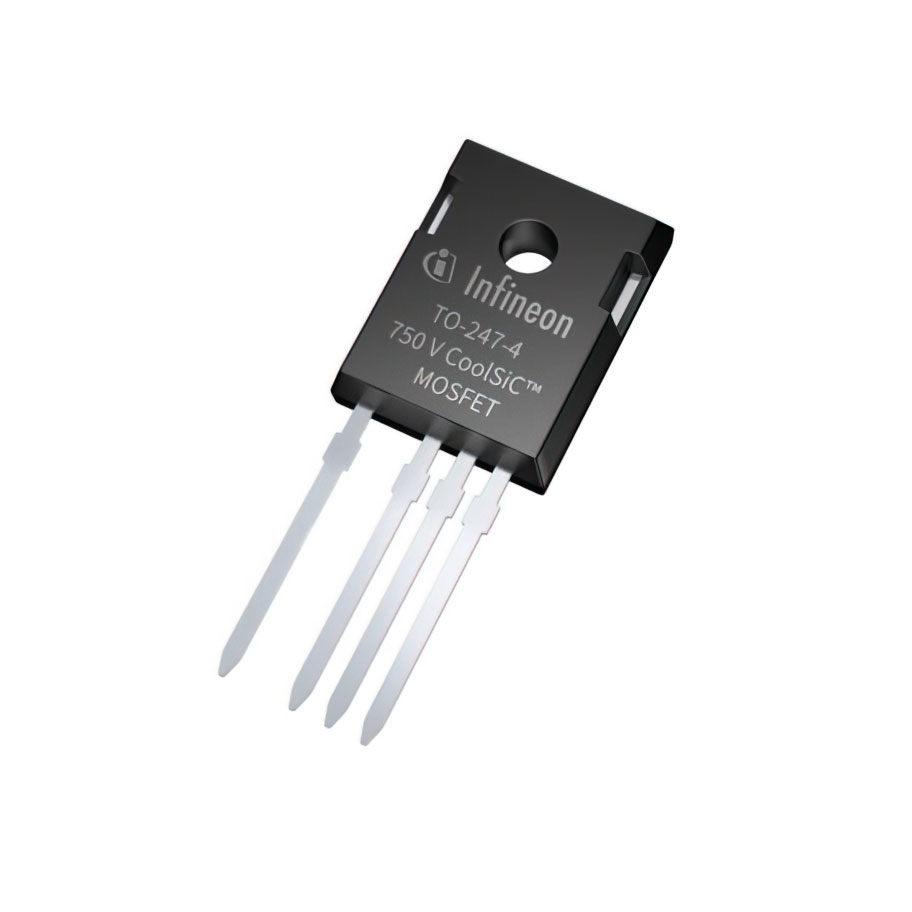

Same model may have multiple batches, images only for reference.

IMZA75R027M1HXKSA1
Manufacturer No:	IMZA75R027M1HXKSA1
Manufacturer:	IR (Infineon Technologies)
SUVSysrem No:	IMZA75R027M1HXKSA1
Package:	Tube
Datasheet:	IMZA75R027M1HXKSA1
Description:	N-Channel 750 V 60A (Tj) 234W (Tc) Through Hole PG-TO247-4
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

IMZA75R027M1HXKSA1 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	IR (Infineon Technologies)
Package	Tube
Description	N-Channel 750 V 60A (Tj) 234W (Tc) Through Hole PG-TO247-4
Package / Case	TO-247-4
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	SiC (Silicon Carbide Junction Transistor)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	60A (Tj)
Rds On (Max) @ Id, Vgs	25mOhm @ 24.5A, 20V
Power Dissipation (Max)	234W (Tc)
Vgs(th) (Max) @ Id	5.6V @ 8.8mA
Supplier Device Package	PG-TO247-4
Drive Voltage (Max Rds On, Min Rds On)	15V, 20V
Vgs (Max)	+23V, -5V
Drain to Source Voltage (Vdss)	750 V
Gate Charge (Qg) (Max) @ Vgs	49 nC @ 18 V
Input Capacitance (Ciss) (Max) @ Vds	1668 pF @ 500 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
