1005188F0-AS70L0100 KYOCERA AVX RF and Wireless distributor and supplier

Same model may have multiple batches, images only for reference.

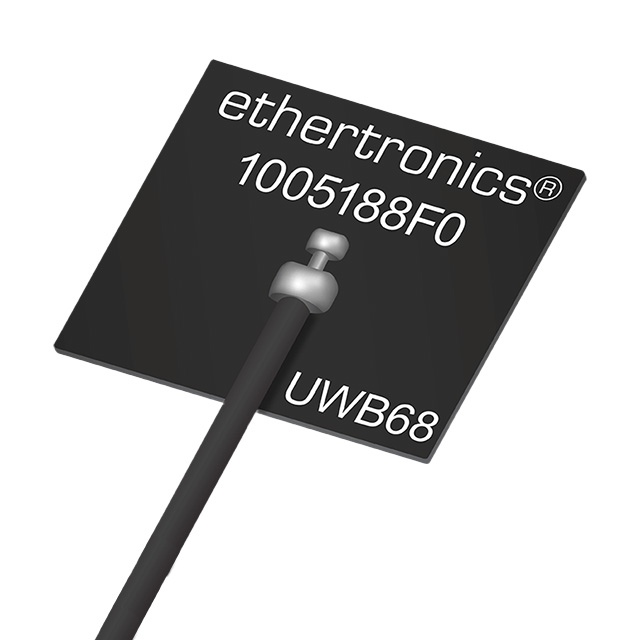

1005188F0-AS70L0100
Manufacturer No:	1005188F0-AS70L0100
Manufacturer:	KYOCERA AVX
SUVSysrem No:	1005188F0-AS70L0100
Package:	Bag
Datasheet:	1005188F0-AS70L0100
Description:	7.25GHz UWB Flat Patch RF Antenna 6GHz ~ 8.5GHz 5.2dBi SMA Male Adhesive
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

1005188F0-AS70L0100 information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	KYOCERA AVX
Package	Bag
Description	7.25GHz UWB Flat Patch RF Antenna 6GHz ~ 8.5GHz 5.2dBi SMA Male Adhesive
Features	Cable - 100mm
Mounting Type	Adhesive
Frequency Range	6GHz ~ 8.5GHz
Applications	UWB
Gain	5.2dBi
Termination	SMA Male
Number of Bands	1
VSWR	2
Antenna Type	Flat Patch
Height (Max)	0.008" (0.20mm)
Frequency Group	SHF (f > 4GHz)
Frequency (Center/Band)	7.25GHz
RF Family/Standard	General ISM
Power - Max	10 W

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
