| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
KYOCERA AVX |
| Package |
Bag |
| Description |

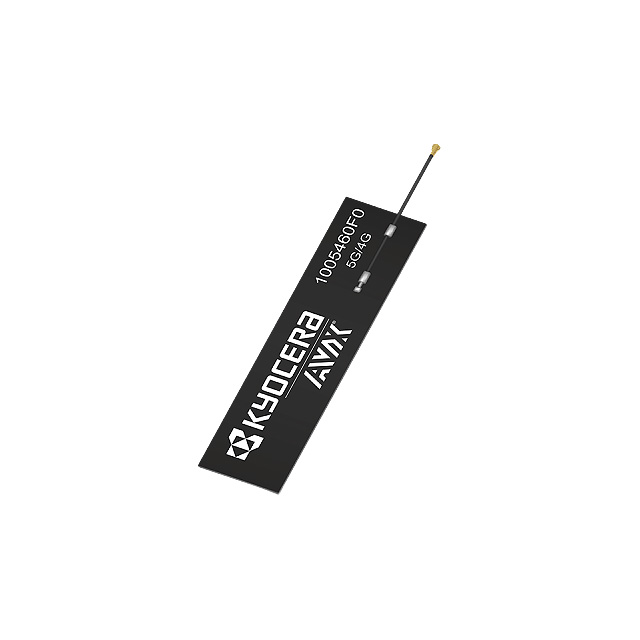

788.5MHz, 1.8GHz, 2.5GHz, 3.55GHz, 5.5GHz 4G, 5G, LoRa, LTE, Sigfox Flat Patch RF Antenna 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5GHz ~ 6GHz 3.4dBi, 4dBi, 3dBi, 2.5dBi, 4.2dBi MHF4L, MMCX, U.FL Adhesive |
| Features | Cable - 100mm |
| Mounting Type | Adhesive |
| Frequency Range | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5GHz ~ 6GHz |
| Applications | 4G, 5G, LoRa, LTE, Sigfox |
| Gain | 3.4dBi, 4dBi, 3dBi, 2.5dBi, 4.2dBi |
| Termination | MHF4L, MMCX, U.FL |
| Number of Bands | 5 |
| VSWR | 2, 2.1, 2.4 |
| Antenna Type | Flat Patch |
| Height (Max) | 0.063" (1.60mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.8GHz, 2.5GHz, 3.55GHz, 5.5GHz |
| RF Family/Standard | Cellular |
| Power - Max | 2 W |
