W3P42X8W04-U100D3B0A KYOCERA AVX RF and Wireless distributor and supplier

Same model may have multiple batches, images only for reference.

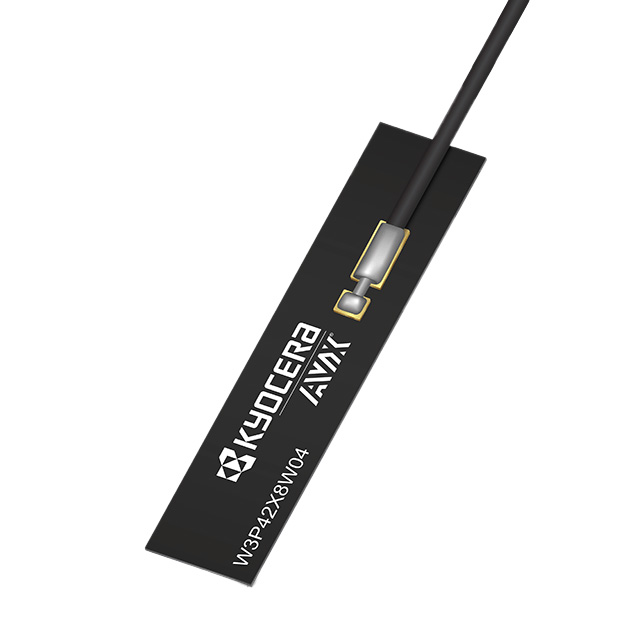

W3P42X8W04-U100D3B0A
Manufacturer No:	W3P42X8W04-U100D3B0A
Manufacturer:	KYOCERA AVX
SUVSysrem No:	W3P42X8W04-U100D3B0A
Package:	Box
Datasheet:	W3P42X8W04-U100D3B0A
Description:	2.45GHz, 5.525GHz WLAN, Zigbee™ Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.9GHz -1dBi, -1dBi MHF, U.FL Adhesive
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

W3P42X8W04-U100D3B0A information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	KYOCERA AVX
Package	Box
Description	2.45GHz, 5.525GHz WLAN, Zigbee™ Flat Patch RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.9GHz -1dBi, -1dBi MHF, U.FL Adhesive
Features	Cable - 100mm
Mounting Type	Adhesive
Frequency Range	2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.9GHz
Applications	WLAN, Zigbee™
Gain	-1dBi, -1dBi
Termination	MHF, U.FL
Number of Bands	2
Antenna Type	Flat Patch
Height (Max)	0.063" (1.60mm)
Return Loss	-7.4dB, -4.5dB
Frequency Group	UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)	2.45GHz, 5.525GHz
RF Family/Standard	802.15.4, Bluetooth, WiFi

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
