MCAC100N04-TP Micro Commercial Components (MCC) Discrete Semiconductor Products distributor and supplier

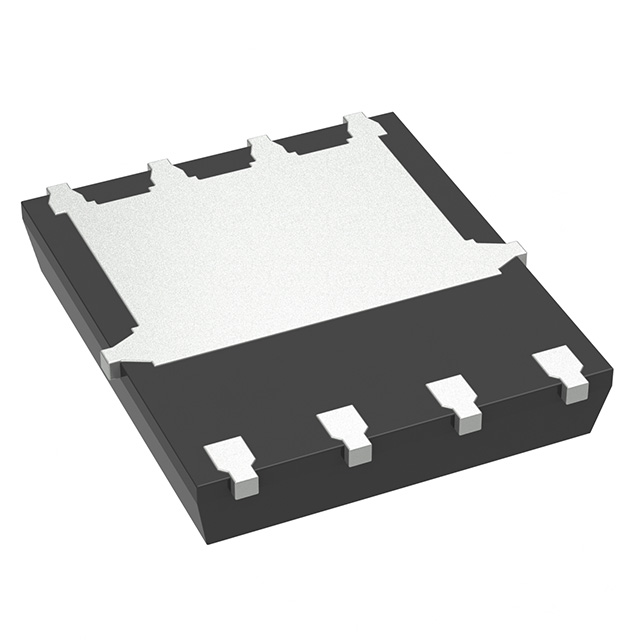

Same model may have multiple batches, images only for reference.

MCAC100N04-TP
Manufacturer No:	MCAC100N04-TP
Manufacturer:	Micro Commercial Components (MCC)
SUVSysrem No:	MCAC100N04-TP
Package:	Tape & Reel (TR)
Datasheet:	MCAC100N04-TP
Description:	N-Channel 40 V 100A (Tc) 75W (Tj) Surface Mount DFN5060
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

MCAC100N04-TP information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Micro Commercial Components (MCC)
Package	Tape & Reel (TR)
Description	N-Channel 40 V 100A (Tc) 75W (Tj) Surface Mount DFN5060
Package / Case	8-PowerTDFN
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Rds On (Max) @ Id, Vgs	3.5mOhm @ 20A, 10V
Power Dissipation (Max)	75W (Tj)
Vgs(th) (Max) @ Id	2.5V @ 250µA
Supplier Device Package	DFN5060
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	40 V
Gate Charge (Qg) (Max) @ Vgs	93 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	4165 pF @ 25 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag
