Home / Products / Discrete Semiconductor Products / Diodes / Rectifiers / Single Diodes / UG1DPLHE3-TP

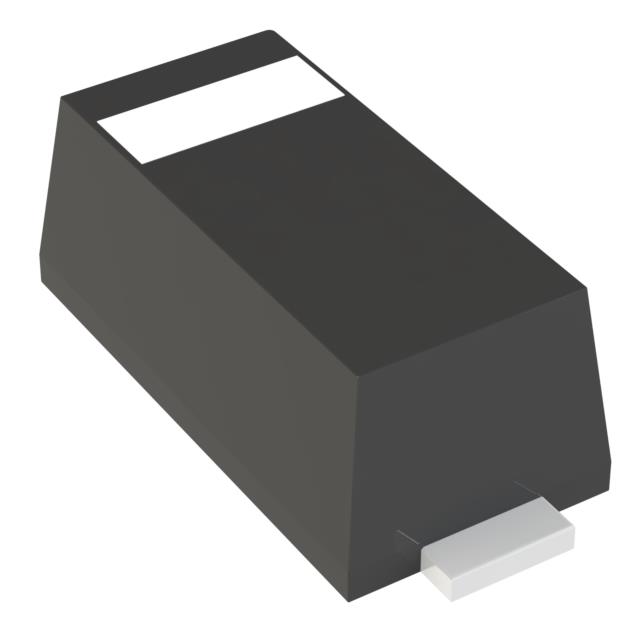

Same model may have multiple batches, images only for reference.

UG1DPLHE3-TP
Manufacturer No: UG1DPLHE3-TP
Manufacturer: Micro Commercial Components (MCC)
SUVSysrem No: UG1DPLHE3-TP
Package: Tape & Reel (TR)
Datasheet: UG1DPLHE3-TP
Description: Diode 200 V 1A Surface Mount SOD-123FL
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

UG1DPLHE3-TP information
Product Attributes Attribute Value
Category Discrete Semiconductor Products
Manufacturer Micro Commercial Components (MCC)
Package Tape & Reel (TR)
Description Diode 200 V 1A Surface Mount SOD-123FL
Package / CaseSOD-123F
Mounting TypeSurface Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)25 ns
TechnologyStandard
Capacitance @ Vr, F15pF @ 4V, 1MHz
Current - Average Rectified (Io)1A
Supplier Device PackageSOD-123FL
Operating Temperature - Junction-55°C ~ 150°C
GradeAutomotive
Voltage - DC Reverse (Vr) (Max)200 V
Voltage - Forward (Vf) (Max) @ If920 mV @ 1 A
Current - Reverse Leakage @ Vr2 µA @ 200 V
QualificationAEC-Q101
