| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
Mobile Mark Antenna Solutions |
| Package |
Bulk |
| Description |

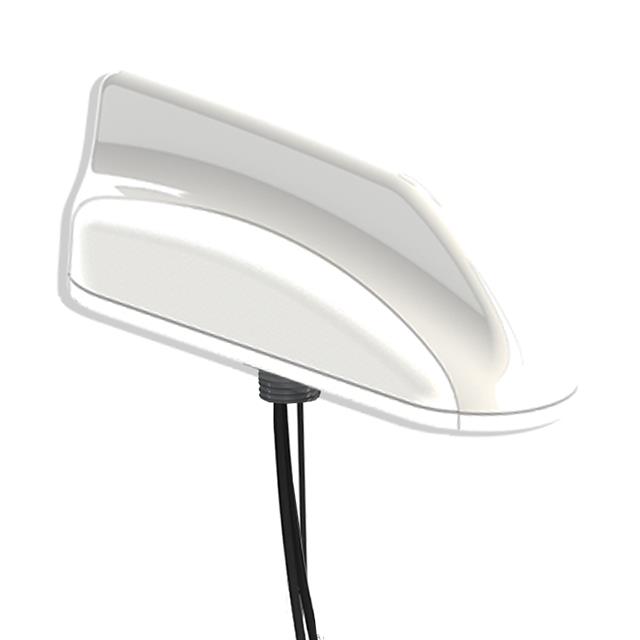

658.5MHz, 830MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.2GHz, 3.8GHz, 5.45GHz 4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi Dome RF Antenna 617MHz ~ 700MHz, 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz, 4.9GHz ~ 6GHz 1dBi, 3dBi, 5dBi, 5dBi, 5dBi, 4dBi, 6dBi, 6dBi SMA Male Through Hole |
| Features | Cable - 4.572m, LNA |
| Mounting Type | Through Hole |
| Frequency Range | 617MHz ~ 700MHz, 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz, 4.9GHz ~ 6GHz |
| Applications | 4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi |
| Gain | 1dBi, 3dBi, 5dBi, 5dBi, 5dBi, 4dBi, 6dBi, 6dBi |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Number of Bands | 8 |
| VSWR | 2.5 |
| Antenna Type | Dome |
| Height (Max) | 2.500" (63.50mm) |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 658.5MHz, 830MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.2GHz, 3.8GHz, 5.45GHz |
| RF Family/Standard | Cellular, Navigation |
| Power - Max | 10 W |
