0534269151 Molex Connectors, Interconnects distributor and supplier

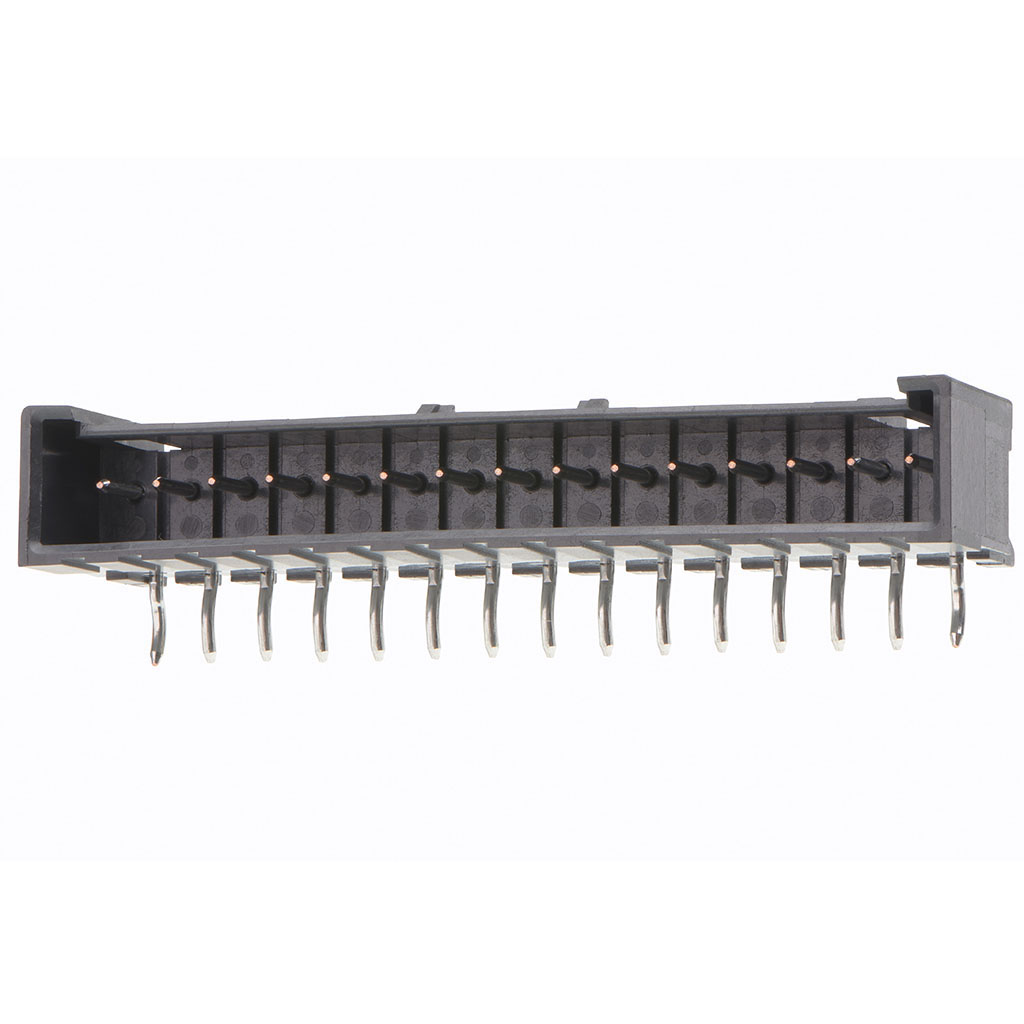

Same model may have multiple batches, images only for reference.

0534269151
Manufacturer No:	0534269151
Manufacturer:	Molex
SUVSysrem No:	0534269151
Package:	Bag
Datasheet:	0534269151
Description:	Connector Header Through Hole, Right Angle 15 position 0.098" (2.50mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

0534269151 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Molex
Package	Bag
Description	Connector Header Through Hole, Right Angle 15 position 0.098" (2.50mm)
Features	Glow Wire Compliant
Connector Type	Header
Voltage Rating	250VAC/DC
Current Rating (Amps)	3A per Contact
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	1
Style	Board to Cable/Wire
Operating Temperature	-55°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Locking Ramp
Number of Positions Loaded	All
Termination	Kinked Pin, Solder
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Insulation Color	Black
Pitch - Mating	0.098" (2.50mm)
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Shape	Circular
Contact Length - Post	0.134" (3.40mm)
Insulation Height	0.264" (6.70mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Contact Length - Mating	0.157" (4.00mm)
