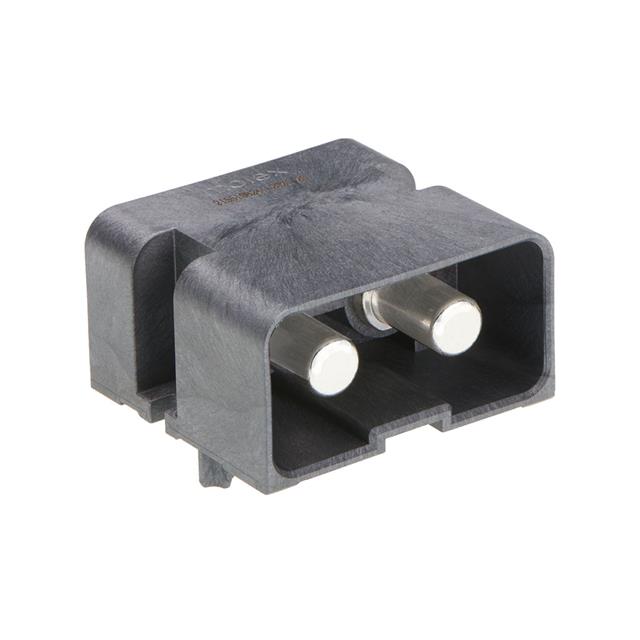

2155108031
Manufacturer No:	2155108031
Manufacturer:	Molex
SUVSysrem No:	2155108031
Package:	Tray
Datasheet:	2155108031
Description:	Connector Header Through Hole, Right Angle 2 position 0.748" (19.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

2155108031 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Molex
Package	Tray
Description	Connector Header Through Hole, Right Angle 2 position 0.748" (19.00mm)
Features	Board Guide
Connector Type	Header
Voltage Rating	400V
Current Rating (Amps)	Varies by Wire Gauge
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Style	Board to Cable/Wire
Operating Temperature	-40°C ~ 125°C
Contact Type	Male Pin, Power
Fastening Type	Push-Pull
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Insulation Color	Black
Pitch - Mating	0.748" (19.00mm)
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	125.0µin (3.18µm)
Contact Finish - Post	Silver
Contact Finish Thickness - Post	125.0µin (3.18µm)
Contact Shape	Circular
Contact Length - Post	0.053" (1.35mm)
Insulation Height	0.951" (24.16mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Liquid Crystal Polymer (LCP)
