2157601032 Molex Connectors, Interconnects distributor and supplier

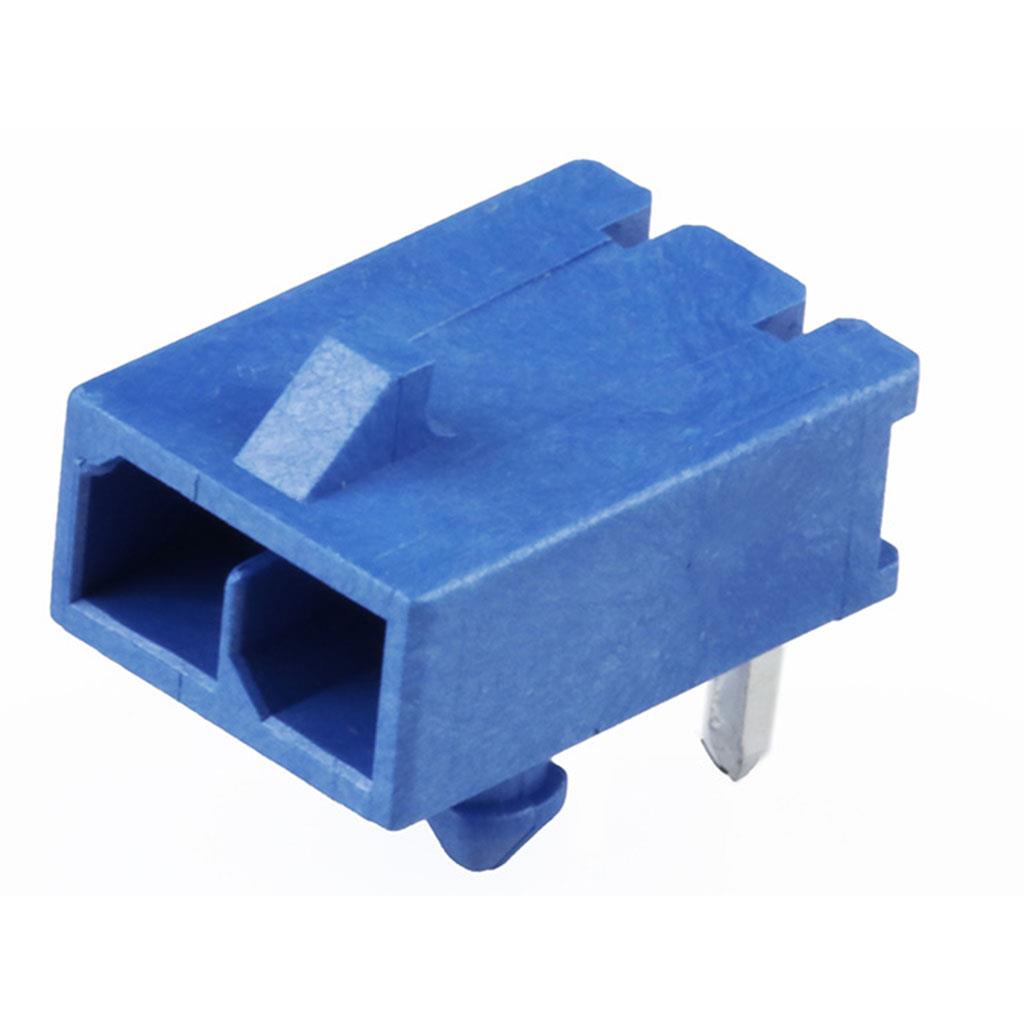

Same model may have multiple batches, images only for reference.

2157601032
Manufacturer No:	2157601032
Manufacturer:	Molex
SUVSysrem No:	2157601032
Package:	Tray
Datasheet:	2157601032
Description:	Connector Header Through Hole, Right Angle 2 position 0.118" (3.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

2157601032 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Molex
Package	Tray
Description	Connector Header Through Hole, Right Angle 2 position 0.118" (3.00mm)
Features	Board Guide, Pick and Place
Connector Type	Header
Voltage Rating	600VAC/DC
Current Rating (Amps)	Varies by Wire Gauge
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	1
Style	Board to Cable/Wire
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Locking Ramp
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Insulation Color	Blue
Pitch - Mating	0.118" (3.00mm)
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Shape	Square
Contact Length - Post	0.125" (3.18mm)
Insulation Height	0.231" (5.87mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
