5055750890 Molex Connectors, Interconnects distributor and supplier

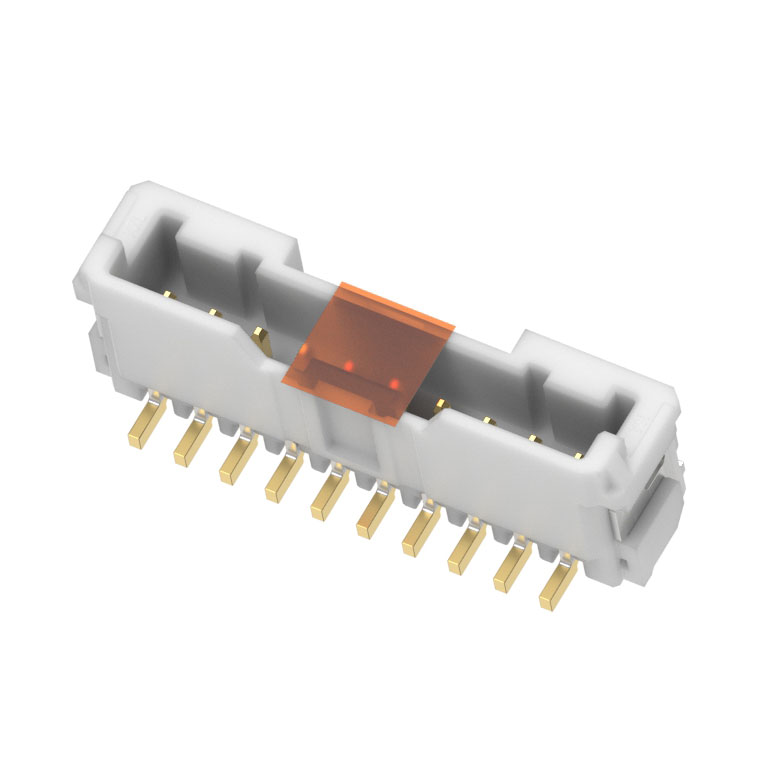

Same model may have multiple batches, images only for reference.

5055750890
Manufacturer No:	5055750890
Manufacturer:	Molex
SUVSysrem No:	5055750890
Package:	Tape & Reel (TR)
Datasheet:	5055750890
Description:	Connector Header Surface Mount 8 position 0.079" (2.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

5055750890 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Molex
Package	Tape & Reel (TR)
Description	Connector Header Surface Mount 8 position 0.079" (2.00mm)
Features	Pick and Place, Solder Retention
Connector Type	Header
Voltage Rating	250VAC/DC
Current Rating (Amps)	Varies by Wire Gauge
Mounting Type	Surface Mount
Number of Positions	8
Number of Rows	1
Style	Board to Cable/Wire
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Locking Ramp
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Brass
Insulation Color	Natural
Pitch - Mating	0.079" (2.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.94µin (0.100µm)
Contact Finish - Post	Gold
Contact Finish Thickness - Post	3.94µin (0.100µm)
Contact Shape	Square
Insulation Height	0.339" (8.61mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Polyamide (PA), Nylon, Glass Filled
