| Product Attributes |
Attribute Value |
| Category |
Power Supplies - Board Mount |
| Manufacturer |
Mornsun |
| Package |
Tray |
| Description |

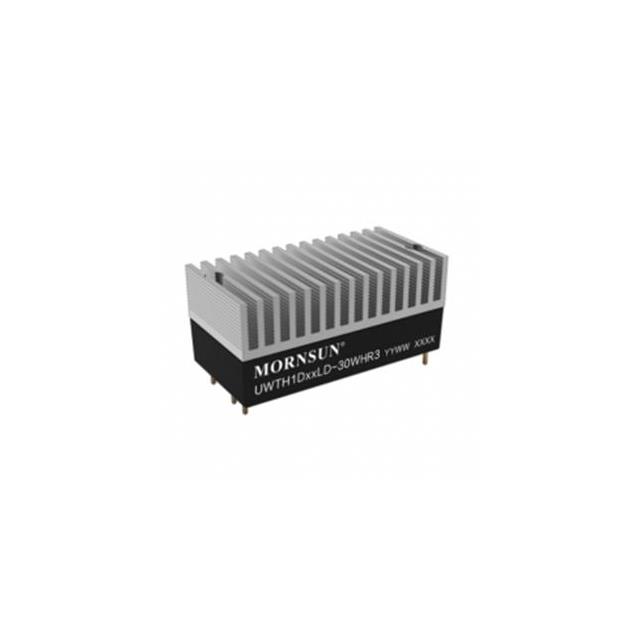

Isolated Module DC DC Converter 1 Output 15V 2A 14V - 160V Input |
| Features | Adjustable Output, Heat Sink, Remote On/Off |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.90" H (50.8mm x 25.4mm x 22.8mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Applications | ITE (Commercial), Railway |
| Voltage - Input (Max) | 160V |
| Approval Agency | CB, cCSAus, CE, CSA, EN, IEC, UKCA |
| Efficiency | 87% |
| Current - Output (Max) | 2A |
| Voltage - Input (Min) | 14V |
| Voltage - Output 1 | 15V |
| Power (Watts) | 30 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
| Standard Number | 62368-1 |
