PSMNR90-40YSNX Nexperia Discrete Semiconductor Products distributor and supplier

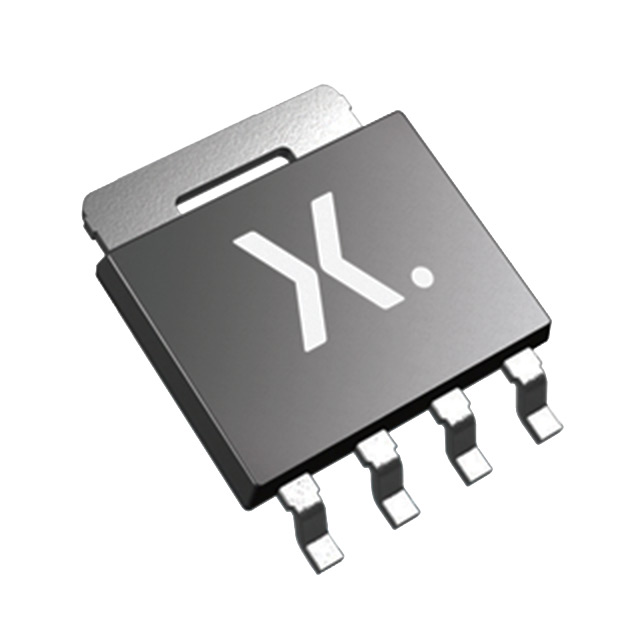

Same model may have multiple batches, images only for reference.

PSMNR90-40YSNX
Manufacturer No:	PSMNR90-40YSNX
Manufacturer:	Nexperia
SUVSysrem No:	PSMNR90-40YSNX
Package:	Tape & Reel (TR)
Datasheet:	PSMNR90-40YSNX
Description:	N-Channel 40 V 320A (Tc) 268W (Tc) Surface Mount LFPAK56, Power-SO8
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

PSMNR90-40YSNX information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	Nexperia
Package	Tape & Reel (TR)
Description	N-Channel 40 V 320A (Tc) 268W (Tc) Surface Mount LFPAK56, Power-SO8
Package / Case	SC-100, SOT-669
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	320A (Tc)
Rds On (Max) @ Id, Vgs	0.97mOhm @ 25A, 10V
FET Feature	Schottky Diode (Body)
Power Dissipation (Max)	268W (Tc)
Vgs(th) (Max) @ Id	3.6V @ 1mA
Supplier Device Package	LFPAK56, Power-SO8
Drive Voltage (Max Rds On, Min Rds On)	10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	40 V
Gate Charge (Qg) (Max) @ Vgs	189 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	10622 pF @ 25 V
