PE45556
Manufacturer No: PE45556
Manufacturer: Pasternack
SUVSysrem No: PE45556
Package: Retail Package
Datasheet: PE45556

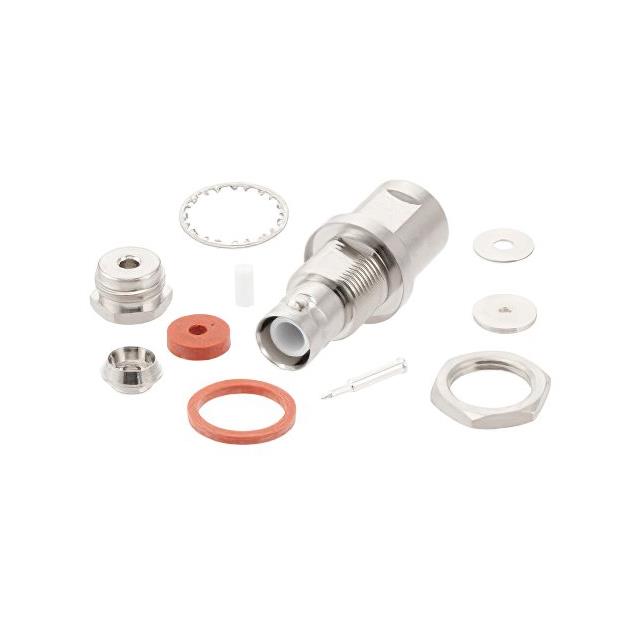

Description: SHV Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

PE45556 information
Product Attributes Attribute Value
Category Connectors, Interconnects
Manufacturer Pasternack
Package Retail Package
Description SHV Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Connector TypeJack, Female Socket
Contact TerminationSolder
Impedance50 Ohms
Mounting TypePanel Mount
Cable GroupRG-174, 188, 316
Operating Temperature-65°C ~ 165°C
Fastening TypeBayonet Lock
Connector StyleSHV
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Mounting FeatureBulkhead - Front Side Nut
Body MaterialBrass
Housing ColorSilver
Shield TerminationClamp
Center Contact MaterialBrass
Body FinishNickel
Center Contact PlatingSilver
Number of Ports1
