PE45869 Pasternack Connectors, Interconnects distributor and supplier

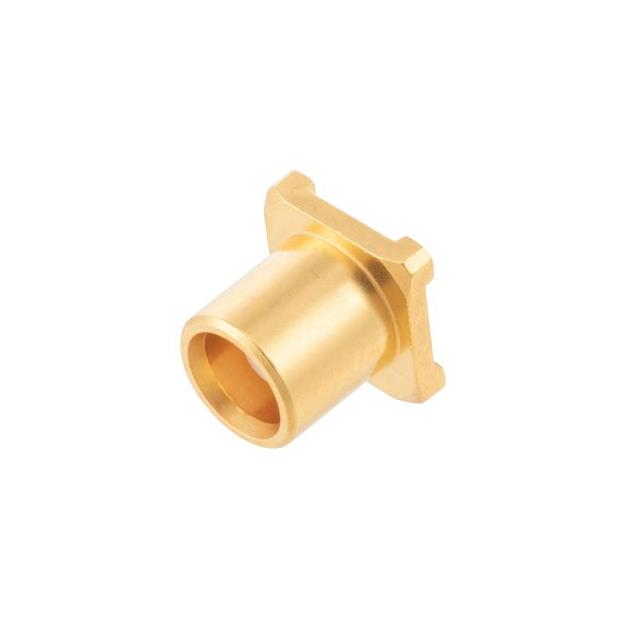

Same model may have multiple batches, images only for reference.

PE45869
Manufacturer No:	PE45869
Manufacturer:	Pasternack
SUVSysrem No:	PE45869
Package:	Retail Package
Datasheet:	PE45869
Description:	MCX Connector Plug, Male Pin 50 Ohms Surface Mount Solder
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

PE45869 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Pasternack
Package	Retail Package
Description	MCX Connector Plug, Male Pin 50 Ohms Surface Mount Solder
Connector Type	Plug, Male Pin
Contact Termination	Solder
Impedance	50 Ohms
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 125°C
Insertion Loss	0.05dB
Fastening Type	Snap-On
Connector Style	MCX
Body Material	Bronze
Housing Color	Gold
Mating Cycles	500
Shield Termination	Solder
Center Contact Material	Beryllium Copper
Body Finish	Gold
Center Contact Plating	Gold
Frequency - Max	6 GHz
Number of Ports	1
Voltage Rating	335 V
