HCPL3700SDM Sanyo Semiconductor/onsemi Isolators distributor and supplier

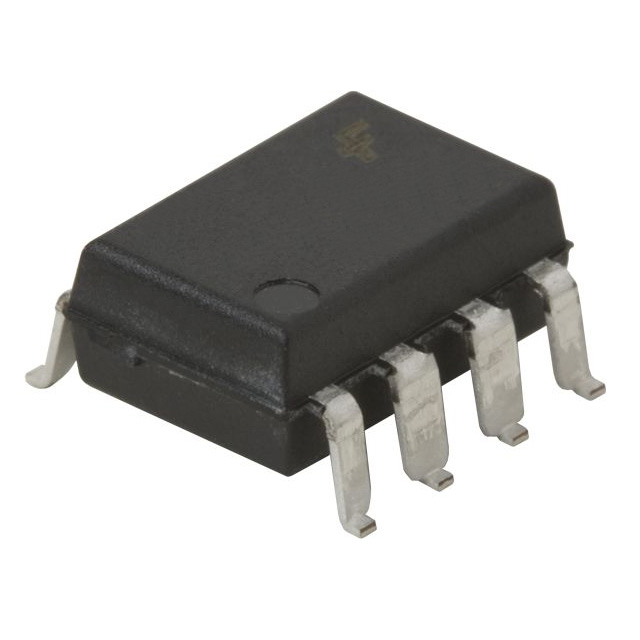

Same model may have multiple batches, images only for reference.

HCPL3700SDM
Manufacturer No:	HCPL3700SDM
Manufacturer:	Sanyo Semiconductor/onsemi
SUVSysrem No:	HCPL3700SDM
Package:	Tape & Reel (TR)
Datasheet:	HCPL3700SDM
Description:	Optoisolator Darlington Output 2500Vrms 1 Channel 8-SMD
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

HCPL3700SDM information

Product Attributes	Attribute Value
Category	Isolators
Manufacturer	Sanyo Semiconductor/onsemi
Package	Tape & Reel (TR)
Description	Optoisolator Darlington Output 2500Vrms 1 Channel 8-SMD
Package / Case	8-SMD, Gull Wing
Output Type	Darlington
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C
Input Type	AC, DC
Current - Output / Channel	30mA
Voltage - Isolation	2500Vrms
Supplier Device Package	8-SMD
Voltage - Output (Max)	20V
Turn On / Turn Off Time (Typ)	6µs, 25µs
Rise / Fall Time (Typ)	45µs, 500ns
Number of Channels	1
Current - DC Forward (If) (Max)	30 mA

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
