248NQ100-1 SMC Diode Solutions Discrete Semiconductor Products distributor and supplier

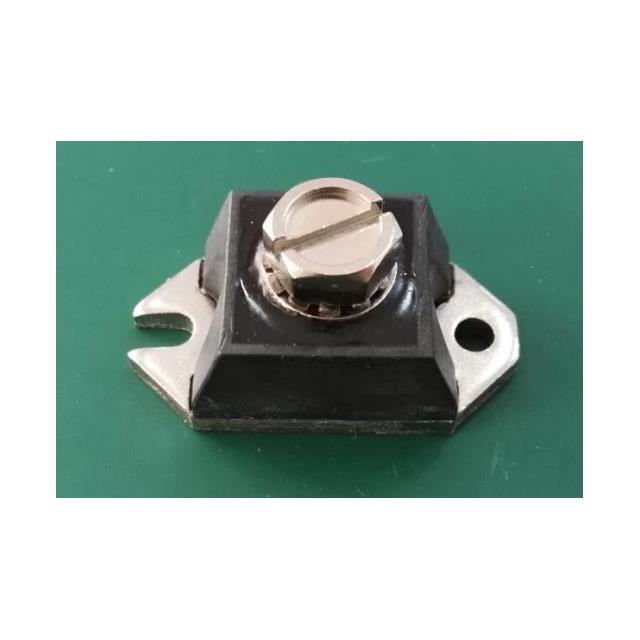

Same model may have multiple batches, images only for reference.

248NQ100-1
Manufacturer No:	248NQ100-1
Manufacturer:	SMC Diode Solutions
SUVSysrem No:	248NQ100-1
Package:	Bulk
Datasheet:	248NQ100-1
Description:	Diode 100 V 240A Chassis Mount PRM1-1 (Half Pak Module)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

248NQ100-1 information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	SMC Diode Solutions
Package	Bulk
Description	Diode 100 V 240A Chassis Mount PRM1-1 (Half Pak Module)
Package / Case	HALF-PAK
Mounting Type	Chassis Mount
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Technology	Schottky
Capacitance @ Vr, F	5277pF @ 5V, 1MHz
Current - Average Rectified (Io)	240A
Supplier Device Package	PRM1-1 (Half Pak Module)
Operating Temperature - Junction	-55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max)	100 V
Voltage - Forward (Vf) (Max) @ If	950 mV @ 240 A
Current - Reverse Leakage @ Vr	6 mA @ 100 V

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
