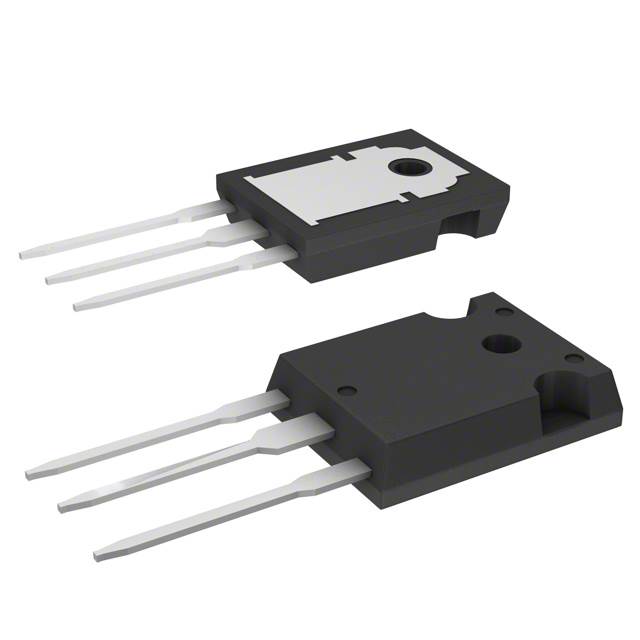

Same model may have multiple batches, images only for reference.

S2M0160120D
Manufacturer No:	S2M0160120D
Manufacturer:	SMC Diode Solutions
SUVSysrem No:	S2M0160120D
Package:	Tube
Datasheet:	S2M0160120D
Description:	N-Channel 1200 V 17A (Tc) 130W (Tc) Through Hole TO-247AD
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

S2M0160120D information

Product Attributes	Attribute Value
Category	Discrete Semiconductor Products
Manufacturer	SMC Diode Solutions
Package	Tube
Description	N-Channel 1200 V 17A (Tc) 130W (Tc) Through Hole TO-247AD
Package / Case	TO-247-3
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 175°C (TJ)
Technology	SiC (Silicon Carbide Junction Transistor)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	17A (Tc)
Rds On (Max) @ Id, Vgs	196mOhm @ 10A, 20V
Power Dissipation (Max)	130W (Tc)
Vgs(th) (Max) @ Id	4V @ 2.5mA
Supplier Device Package	TO-247AD
Drive Voltage (Max Rds On, Min Rds On)	20V
Vgs (Max)	+20V, -5V
Drain to Source Voltage (Vdss)	1200 V
Gate Charge (Qg) (Max) @ Vgs	26.5 nC @ 20 V
Input Capacitance (Ciss) (Max) @ Vds	513 pF @ 1000 V
