Home / Products / Isolators / Optoisolators / Transistor, Photovoltaic Output Optoisolators / PC81712NSZ1B

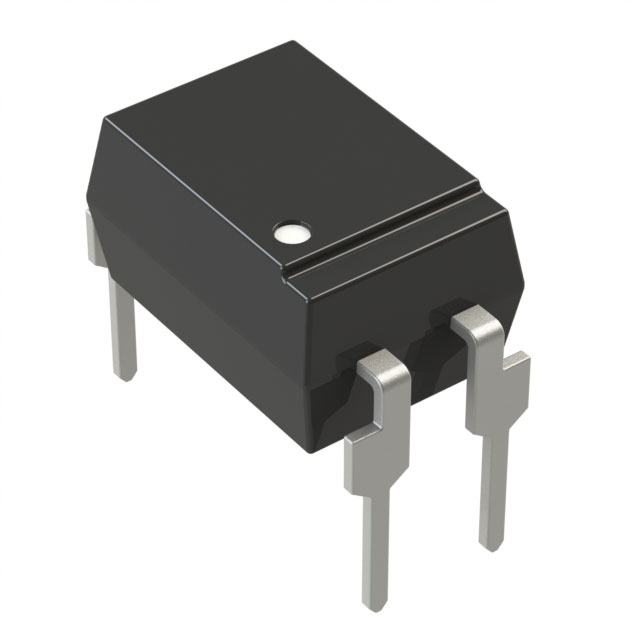

Same model may have multiple batches, images only for reference.

PC81712NSZ1B
Manufacturer No: PC81712NSZ1B
Manufacturer: Socle Technology Corporation
SUVSysrem No: PC81712NSZ1B
Package: Tape & Reel (TR)
Datasheet: PC81712NSZ1B
Description: Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Request Free Samples
  • ESD

    ESD

  • ISO9001

    ISO9001

  • ISO13485

    ISO13485

  • ISO14001

    ISO14001

  • ISO45001

    ISO45001

PC81712NSZ1B information
Product Attributes Attribute Value
Category Isolators
Manufacturer Socle Technology Corporation
Package Tape & Reel (TR)
Description Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Package / Case4-DIP (0.300", 7.62mm)
Output TypeTransistor
Mounting TypeThrough Hole
Operating Temperature-30°C ~ 100°C
Voltage - Forward (Vf) (Typ)1.2V
Input TypeDC
Current - Output / Channel50mA
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)100% @ 500µA
Vce Saturation (Max)200mV
Current Transfer Ratio (Max)600% @ 500µA
Supplier Device Package4-DIP
Voltage - Output (Max)80V
Rise / Fall Time (Typ)4µs, 3µs
Number of Channels1
Current - DC Forward (If) (Max)10 mA
Package

  • Step1:
    Product

  • Step2:
    Casing drivepipe

  • Step3:
    Anti-static bag

  • Step4:
    Packging boxes

  • Step5:
    bar-code shipping tag
Returning/Warranty
SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
