LEOAC32PT-D STMicroelectronics Integrated Circuits (ICs) distributor and supplier

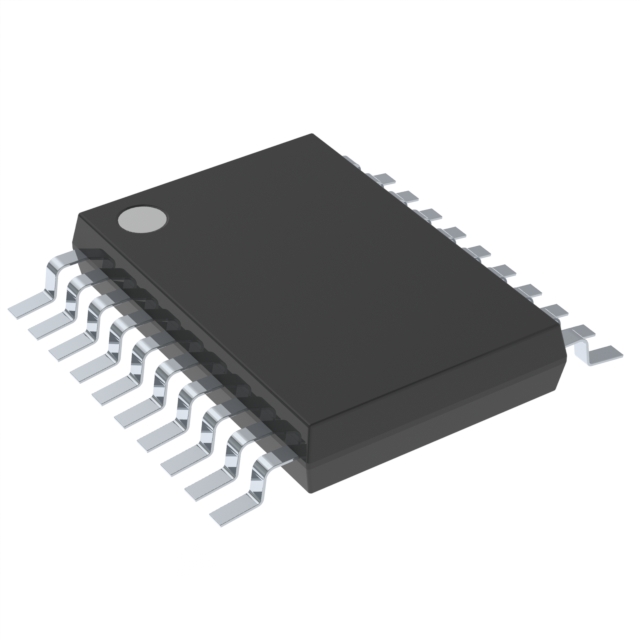

Same model may have multiple batches, images only for reference.

LEOAC32PT-D
Manufacturer No:	LEOAC32PT-D
Manufacturer:	STMicroelectronics
SUVSysrem No:	LEOAC32PT-D
Package:	Tape & Reel (TR)
Datasheet:	LEOAC32PT-D
Description:	OR Gate IC 4 Channel 20-TSSOP
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

LEOAC32PT-D information

Product Attributes	Attribute Value
Category	Integrated Circuits (ICs)
Manufacturer	STMicroelectronics
Package	Tape & Reel (TR)
Description	OR Gate IC 4 Channel 20-TSSOP
Package / Case	20-TSSOP (0.173", 4.40mm Width)
Mounting Type	Surface Mount
Logic Type	OR Gate
Operating Temperature	-40°C ~ 125°C
Voltage - Supply	2V ~ 6V
Current - Output High, Low	24mA, 24mA
Number of Inputs	2
Supplier Device Package	20-TSSOP
Input Logic Level - High	2.1V ~ 3.85V
Input Logic Level - Low	0.9V ~ 1.65V
Max Propagation Delay @ V, Max CL	9ns @ 4.5V, 50pF
Number of Circuits	4
Current - Quiescent (Max)	40 µA
