| Product Attributes |
Attribute Value |
| Category |
Discrete Semiconductor Products |
| Manufacturer |
STMicroelectronics |
| Package |
Tube |
| Description |
SCR 600 V 4 A Sensitive Gate Through Hole IPAK |

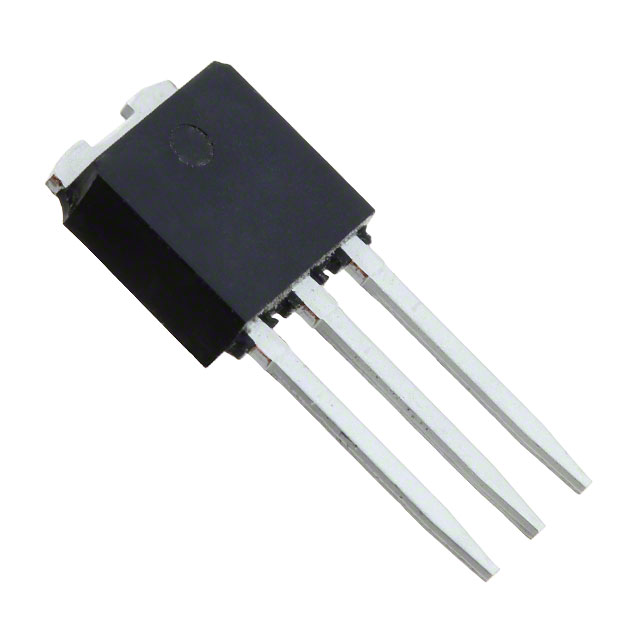

| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| SCR Type | Sensitive Gate |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - Hold (Ih) (Max) | 5 mA |
| Current - Gate Trigger (Igt) (Max) | 200 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 30A, 33A |
| Current - On State (It (AV)) (Max) | 2.5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 800 mV |
| Voltage - On State (Vtm) (Max) | 1.8 V |
| Current - Off State (Max) | 5 µA |
| Supplier Device Package | IPAK |
| Current - On State (It (RMS)) (Max) | 4 A |
| Voltage - Off State | 600 V |
