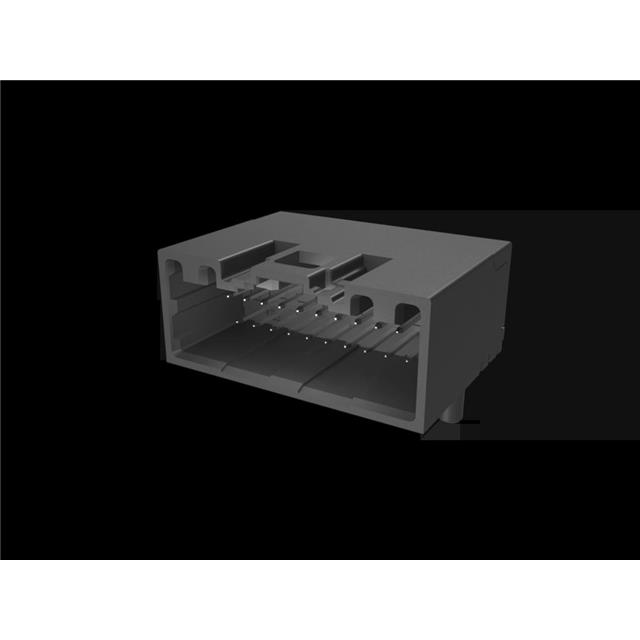

10168530-120KALF
Manufacturer No:	10168530-120KALF
Manufacturer:	Storage & Server IO (Amphenol Communications Solutions)
SUVSysrem No:	10168530-120KALF
Package:	Tape & Reel (TR)
Datasheet:	10168530-120KALF
Description:	Connector Header Through Hole, Right Angle 20 position 0.071" (1.80mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

10168530-120KALF information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	Storage & Server IO (Amphenol Communications Solutions)
Package	Tape & Reel (TR)
Description	Connector Header Through Hole, Right Angle 20 position 0.071" (1.80mm)
Features	Board Guide
Connector Type	Header
Voltage Rating	48V
Current Rating (Amps)	2A
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Rows	2
Style	Board to Cable/Wire
Operating Temperature	-40°C ~ 105°C
Contact Type	Male Pin
Fastening Type	Latch Holder
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Insulation Color	Black
Pitch - Mating	0.071" (1.80mm)
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Shape	Square
Contact Length - Post	0.103" (2.62mm)
Shrouding	Shrouded - 4 Wall
Insulation Material	Thermoplastic
Row Spacing - Mating	0.087" (2.20mm)
Contact Length - Mating	0.220" (5.59mm)
