| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
Storage & Server IO (Amphenol Communications Solutions) |
| Package |
Tray |
| Description |

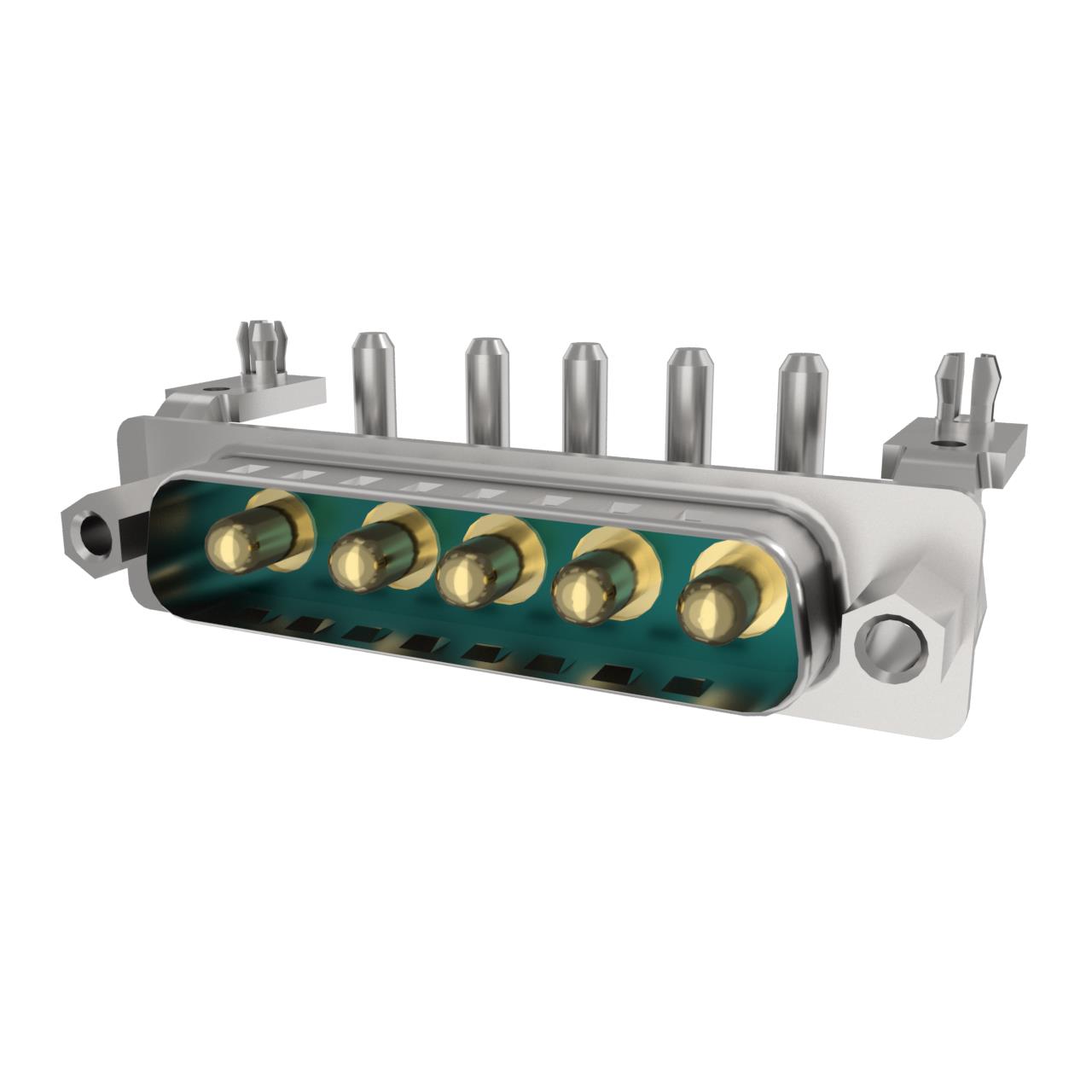

5 (Power) Position D-Sub, Combo Plug, Male Pins Connector |
| Features | Board Lock, Grounding Indents, Mounting Brackets |
| Connector Type | Plug, Male Pins |
| Contact Finish | Silver |
| Color | Green |
| Voltage Rating | 300V |
| Current Rating (Amps) | 75A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 5 (Power) |
| Number of Rows | 1 |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Power |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Connector Style | D-Sub, Combo |
| Material Flammability Rating | UL94 V-0 |
| Dielectric Material | Thermoplastic |
| Shell Material, Finish | Steel, Nickel Plated |
| Contact Material | Copper Alloy |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 |
| Backset Spacing | 0.458" (11.64mm) |
| Primary Material | Metal |
