| Product Attributes |
Attribute Value |
| Category |
Connectors, Interconnects |
| Manufacturer |
Switchcraft / Conxall |
| Package |
Bulk |
| Description |

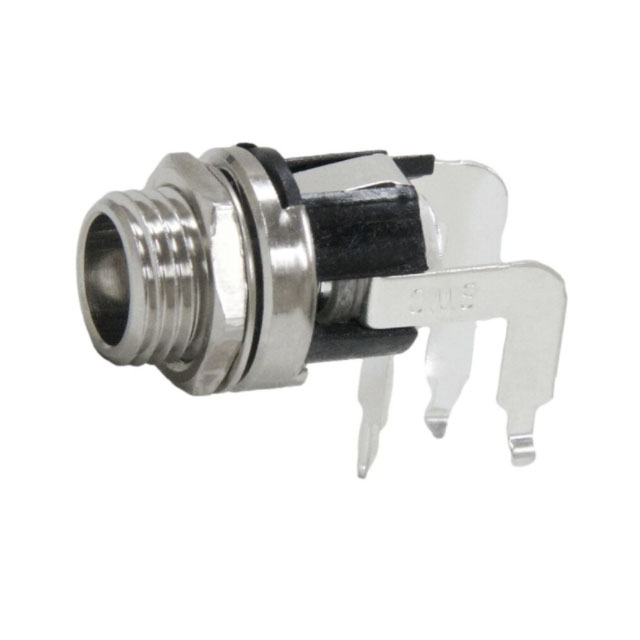

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle |
| Features | Mounting Hardware, Thread Lock |
| Voltage - Rated | 12VDC |
| Connector Type | Jack |
| Gender | Male |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Shielding | Unshielded |
| Thread Size | 5/16"-32 |
| Operating Temperature | -55°C ~ 85°C |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Termination | Solder |
| Mounting Feature | Bulkhead - Front Side Nut |
| Contact Material | Copper Alloy |
| Housing Material | Copper Alloy |
| Body Material | Copper Alloy |
| Body Color | Silver |
| Contact Material - Plating | Silver |
| Mating Length/Depth | 0.374" (9.50mm) |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") |
| Current Rating (Amps) | 5 A |
