| Product Attributes |
Attribute Value |
| Category |
RF and Wireless |
| Manufacturer |
Taoglas |
| Package |
Bulk |
| Description |

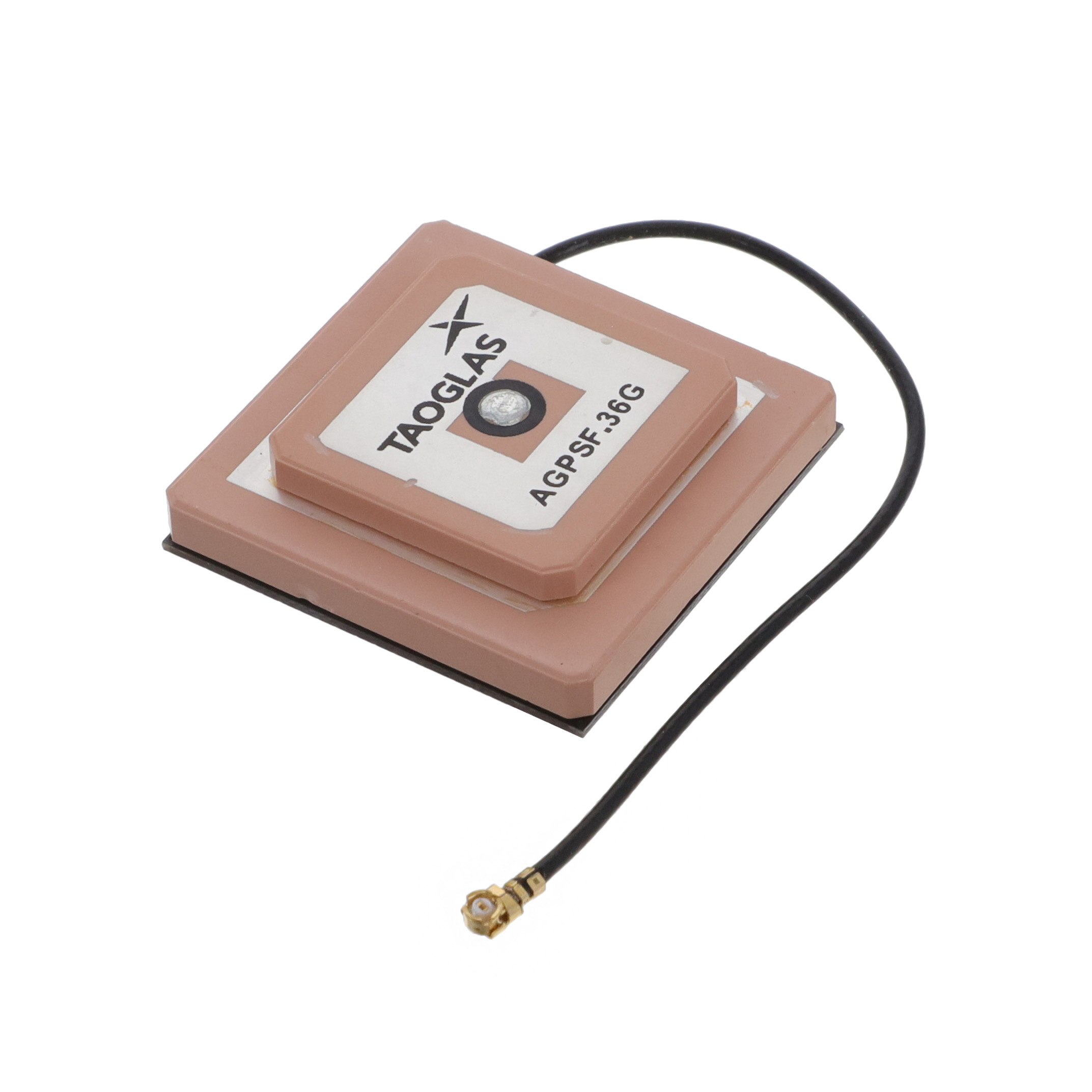

1.22GHz, 1.24GHz, 1.56GHz, 1.575GHz, 1.576GHz, 1.6GHz Beidou, Galileo, GLONASS, GPS Ceramic Patch RF Antenna 1.21GHz ~ 1.24GHz, 1.24GHz ~ 1.25GHz, 1.559GHz ~ 1.56GHz, 1.563GHz ~ 1.59GHz, 1.564GHz ~ 1.61GHz, 1.59GHz ~ 1.61GHz 4.2dBi, 3.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi U.FL (UMCC), IPEX MHF1 Surface Mount |
| Features | Cable - 100mm, LNA, Filter |
| Mounting Type | Surface Mount |
| Frequency Range | 1.21GHz ~ 1.24GHz, 1.24GHz ~ 1.25GHz, 1.559GHz ~ 1.56GHz, 1.563GHz ~ 1.59GHz, 1.564GHz ~ 1.61GHz, 1.59GHz ~ 1.61GHz |
| Applications | Beidou, Galileo, GLONASS, GPS |
| Gain | 4.2dBi, 3.2dBi, 0.9dBi, 3.7dBi, 3.7dBi, 0.8dBi |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Number of Bands | 6 |
| Antenna Type | Ceramic Patch |
| Height (Max) | 0.433" (11.00mm) |
| Return Loss | -10dB |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.22GHz, 1.24GHz, 1.56GHz, 1.575GHz, 1.576GHz, 1.6GHz |
| RF Family/Standard | Navigation |
