HP24510.A Taoglas RF and Wireless distributor and supplier

Same model may have multiple batches, images only for reference.

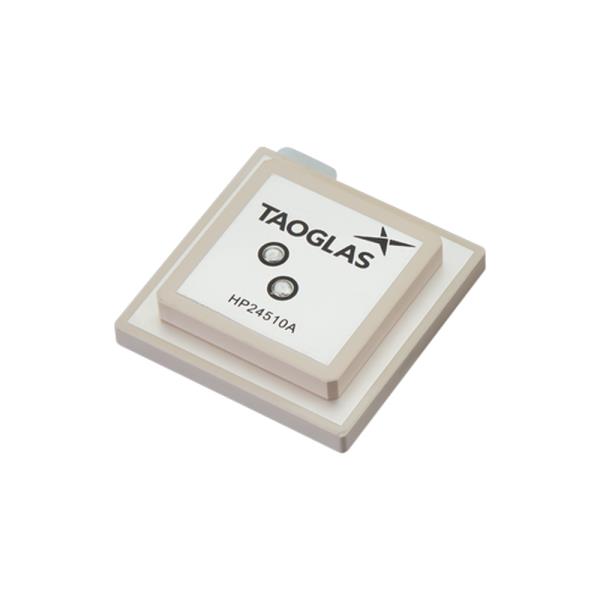

HP24510.A
Manufacturer No:	HP24510.A
Manufacturer:	Taoglas
SUVSysrem No:	HP24510.A
Package:	Bulk
Datasheet:	HP24510.A
Description:	1.227GHz, 1.245GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.601GHz BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS Ceramic Patch RF Antenna 1.215GHz ~ 1.239GHz, 1.237GHz ~ 1.254GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz 3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi Solder Surface Mount
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

HP24510.A information

Product Attributes	Attribute Value
Category	RF and Wireless
Manufacturer	Taoglas
Package	Bulk
Description	1.227GHz, 1.245GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.601GHz BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS Ceramic Patch RF Antenna 1.215GHz ~ 1.239GHz, 1.237GHz ~ 1.254GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz 3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi Solder Surface Mount
Mounting Type	Surface Mount
Frequency Range	1.215GHz ~ 1.239GHz, 1.237GHz ~ 1.254GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz
Applications	BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS
Gain	3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi
Termination	Solder
Number of Bands	6
Antenna Type	Ceramic Patch
Height (Max)	0.394" (10.00mm)
Frequency Group	UHF (1GHz ~ 2GHz)
Frequency (Center/Band)	1.227GHz, 1.245GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.601GHz
RF Family/Standard	Navigation

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag

Returning/Warranty

SUV System provides a 365-day after-sales warranty period for all products, please feel free to contact us if you have any questions during this period.
