2-2823407-4 TE Connectivity AMP Connectors Connectors, Interconnects distributor and supplier

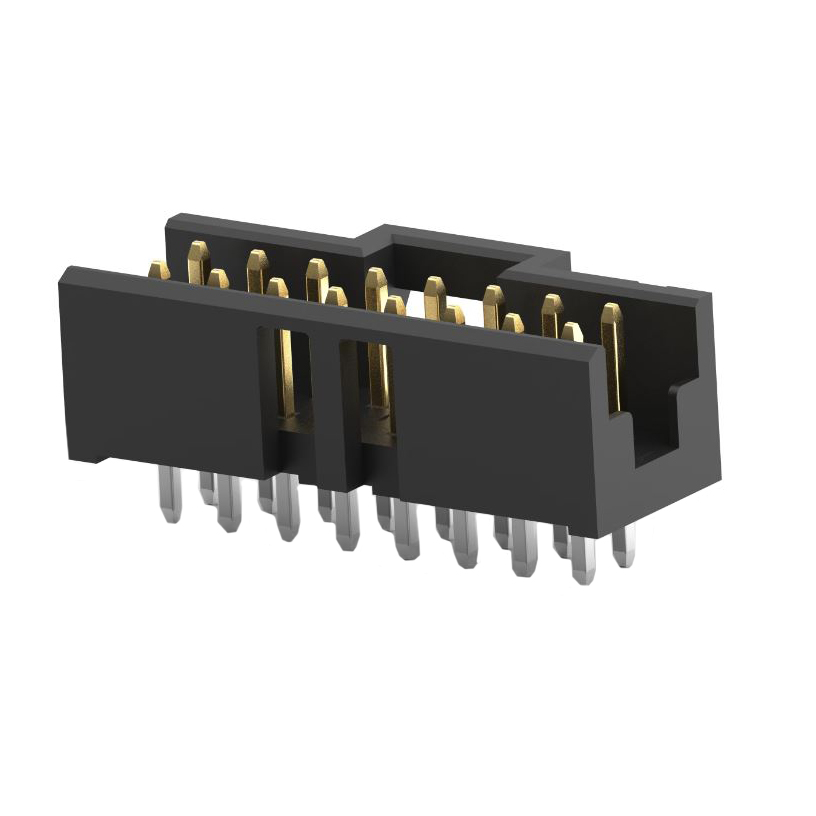

Same model may have multiple batches, images only for reference.

2-2823407-4
Manufacturer No:	2-2823407-4
Manufacturer:	TE Connectivity AMP Connectors
SUVSysrem No:	2-2823407-4
Package:	Tube
Datasheet:	2-2823407-4
Description:	Connector Header Through Hole 24 position 0.079" (2.00mm)
Request Free Samples

ESD
ISO9001
ISO13485
ISO14001
ISO45001

2-2823407-4 information

Product Attributes	Attribute Value
Category	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Package	Tube
Description	Connector Header Through Hole 24 position 0.079" (2.00mm)
Connector Type	Header
Voltage Rating	125VAC/DC
Current Rating (Amps)	2A
Mounting Type	Through Hole
Number of Positions	24
Number of Rows	2
Style	Board to Board or Cable
Operating Temperature	-40°C ~ 125°C
Contact Type	Male Pin
Fastening Type	Latch Holder
Number of Positions Loaded	All
Termination	Solder
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Insulation Color	Black
Pitch - Mating	0.079" (2.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Finish Thickness - Post	157.5µin (4.00µm)
Contact Shape	Square
Contact Length - Post	0.110" (2.80mm)
Insulation Height	0.217" (5.51mm)
Shrouding	Shrouded - 2 Wall
Insulation Material	Thermoplastic
Row Spacing - Mating	0.079" (2.00mm)
Contact Length - Mating	0.157" (4.00mm)

Package

Step1:
Product
Step2:
Casing drivepipe
Step3:
Anti-static bag
Step4:
Packging boxes
Step5:
bar-code shipping tag
