| Product Attributes |
Attribute Value |
| Category |
Integrated Circuits (ICs) |
| Manufacturer |
Texas Instruments |
| Package |
Tray |
| Description |
Boost, Buck, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 22-CFP |

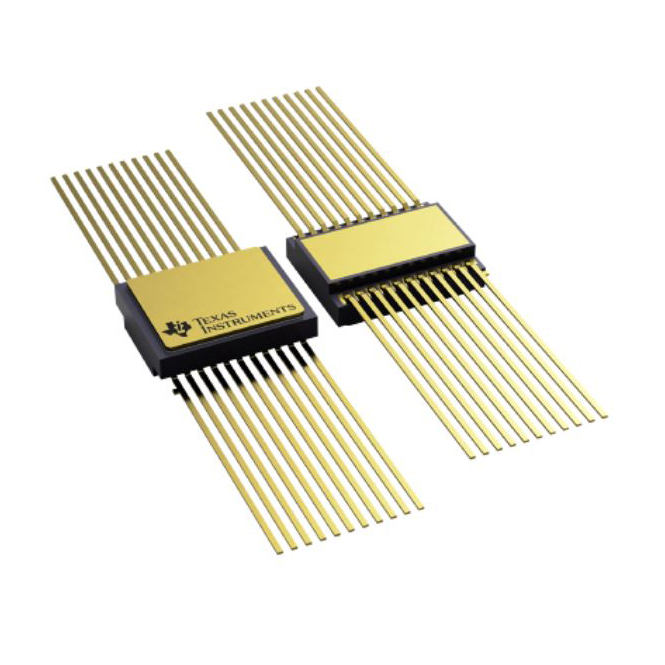

| Package / Case | 22-CFlatPack |
| Output Type | Transistor Driver |
| Mounting Type | Surface Mount |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 100kHz ~ 2MHz |
| Topology | Boost, Buck, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Voltage - Supply (Vcc/Vdd) | 4V ~ 14V |
| Supplier Device Package | 22-CFP |
| Synchronous Rectifier | No |
| Control Features | Enable, Frequency Control, Power Good, Soft Start |
| Output Phases | 1 |
| Duty Cycle (Max) | 100% |
| Clock Sync | Yes |
| Number of Outputs | 1 |
